Cane creek hellbender 70 zs44 28.6 - zs56 40 headset

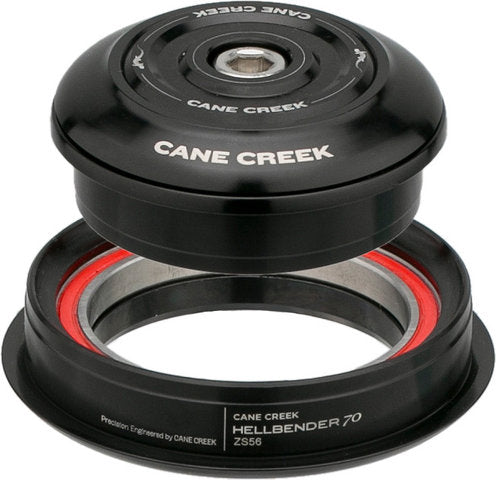

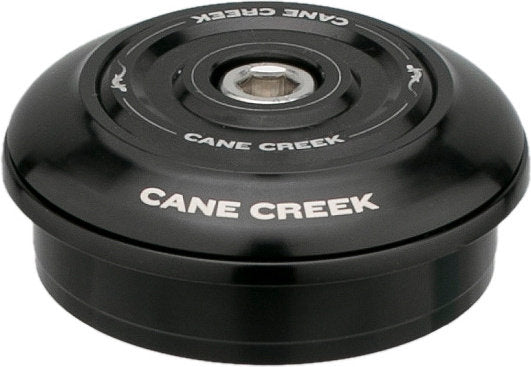

Product Description Precision, quality, value: the Hellbender 70 ZS Headset by Cane Creek The Cane Creek Hellbender 70 headset, made from 6061T-6 aluminium and anodized black, bridges the gap between the 40 and 110 headset series. It has the design elements, seals and bearings that distinguish the 110 headset, but is priced closer to the 40 series. Top and double lower bearing seals provide perfect protection against dust, mud and other contaminants. The Cane Creek Hellbender stainless steel bearing is specifically designed for use in harsh conditions. Thus, the Hellbender 70 headset affords longevity and reliability that was previously only found in the 110 series. Use: Designed for 1 1/8" upper head tube diameters and 1.5" lower head tube diameters combined with 1 1/8" - 1.5" tapered forks. Specifications:Application:Cross Country, CyclocrossTop Cup:1 1/8"Bottom Cup:1.5"Steerer Tube:1 1/8" - 1.5" taperedDesign:Zero Stack (ZS)Technical Information:Material:aluminium (6061-T6)Bearings:Hellbender premium stainless steel bearingsBearing Seat:45° x 36°Top Stack Height:8 mmBottom Stack Height:4 mmTop Outer Diameter:44 mmTop Inner Diameter:28.6 mmBottom Outer Diameter:56 mmBottom Inner Diameter:40 mmTop Cap:aluminiumFeatures:bearing cups milled out on the inside for weight savingslow-friction seals, without loose partsInterlok® Spacer compatibleanodisedStandardized Headset Identification System (S.H.I.S.):In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined. Nomenclature:EC:Bearings contained within headset cups that are located outside of the frame (External Cup)ZS:Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)IS:Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)Manufacturer Number:BAA1186K Contents:1 x Cane Creek Hellbender 70 upper headset cup incl. stainless steel bearings1 x Cane Creek Hellbender 70 lower headset cup incl. incl. stainless steel bearings1 x Cane Creek headset cap1 x Cane Creek Ahead top cap1 x star nut with aluminium bolt1 x Cane Creek crown race Manufacturer: Cane Creek Cycling Components 355 Cane Creek Rd Fletcher NC 28732 USA info@canecreek.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
