Shimano crankstel ultegra r8000 11v 172,5mm 34-50t

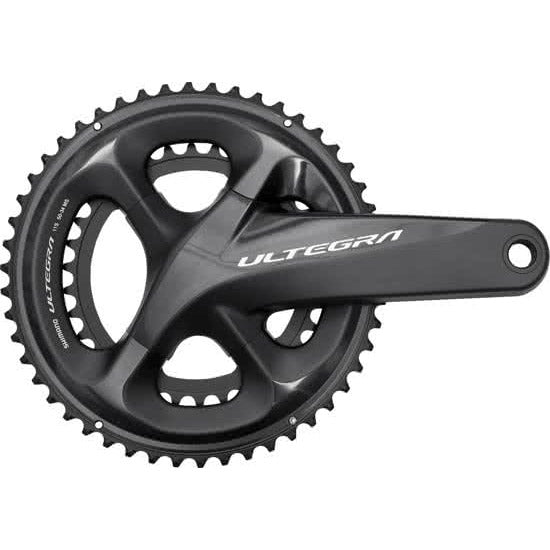

Product Description The Ultegra FC-R8000 crankset by Shimano - elegant and powerful The Shimano Ultegra FC-R8000 11-speed crankset is characterised by its outstanding power transfer efficiency and can be easily used on road bikes with disc brakes and 135 mm over locknut dimension. With a uniform bolt circle diameter of 110 mm, four different chainring combinations can be mounted on the asymmetric 4-arm spider, resulting in a wide range of uses. As a Hollowtech crank with hollow-forged aluminium arms and featuring the Hollowtech II construction, the FC-R8000 offers an optimal stiffness-to-weight ratio. The hollow-shaped outer chainring also contributes to this. Last but not least, your road bike will also be visually enhanced by the Dura-Ace-like aesthetics of the Ultegra crankset. Specifications:Application:Road, CyclocrossCompatibility:Shimano 2x11-speedChainring Mount:110 mm pitch circle, 4-arm asymmetricalTechnical Information:Series:Ultegra R8000Crank Arm Material:AluminiumChainring Material:aluminium, carbon (CFRP) / aluminium (36-46 only aluminium)Axle Material:steelGradation:34-50, 36-46, 36-52, 39-53Crank Arm Length:165.0 mm, 170.0 mm, 172.5 mm, 175.0 mmChainline:43.5 mmQ-Factor:146 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mmRecommended Bottom Bracket:SM-BBR60 or SM-BB72-41B Press Fit Hollowtech II (not included)Recommended Chain:HG-EV 11-speed, HG-X11 (e.g. CN-HG701-11)Compatibility:Shifter:ST-R9100, ST-R9120, ST-9001, ST-9000, SL-BSR1, ST-R8000, ST-R8020, ST-R8025, ST-6800, ST-5800, ST-R7000, ST-R7020, ST-R7025, ST-RS685, ST-RS505, ST-U5060, SL-RS700, SL-U5000, ST-RX810, ST-RX600, ST-R9150, ST-R9160, ST-R9170, ST-R9180, ST-9070, SL-9071, ST-R8050, ST-R8060, ST-R8070, ST-6870, ST-6871, ST-R785, ST-RX815Front Derailleur:FD-R9100 (not for 36-46 T), FD-R8000, FD-5801, FD-R7000, FD-R9150 (not for 36-46 T), FD-R8050Bottom Bracket:BB-R9100, SM-BB9000, SM-BBR60, SM-BB6700, SM-BB5700, BB-RS501, BB-RS500, SM-BB4600, SM-BB92-41B, SM-BB72-41B, SM-BB71-41B, BB-RS500-PBChain:CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Features:optimised, lightweight crank arm design for excellent power transmission efficiencyrevised chainring tooth profile increases the distance to the chain for more compatibility with 135 mm over locknut dimensions and 410 mm chainstay lengthshollow crank arms (Hollowtech)hollow-formed large chainring (Hollowglide)anodised crank arms and chainringsaluminium chainring boltsTechnology:Hollowtech II Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life. Manufacturer Numbers:165.0 mm 34-50:I-FCR8000AX04165.0 mm 39-53:I-FCR8000AX39170.0 mm 34-50:I-FCR8000CX04170.0 mm 36-46:I-FCR8000CX66170.0 mm 36-52:I-FCR8000CX26170.0 mm 39-53:I-FCR8000CX39172.5 mm 34-50:I-FCR8000DX04172.5 mm 36-46:I-FCR8000DX66172.5 mm 36-52:I-FCR8000DX26172.5 mm 39-53:I-FCR8000DX39175.0 mm 34-50:I-FCR8000EX04175.0 mm 36-46:I-FCR8000EX66175.0 mm 36-52:I-FCR8000EX26175.0 mm 39-53:I-FCR8000EX39Contents:1 x Shimano Ultegra FC-R8000 crankset (34-50, 36-46, 36-52 or 39-53 tooth)1 x Shimano crank bolt Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
