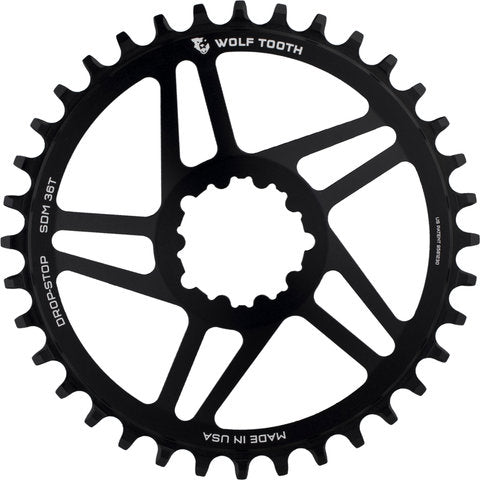

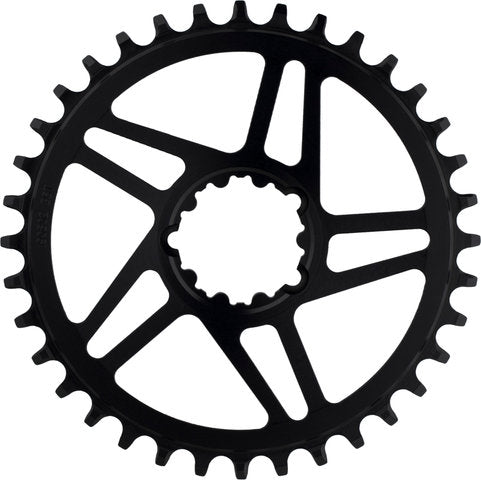

Product Description Wolf Tooth Components SRAM chainrings can replace your spider and chainring with a single, light and strong chainring. Specifications:Application:Cross Country, All MountainMount:SRAM Direct MountTeeth:26 T, 28 T, 30 T, 32 T, 34 T, 36 T, 38 TGearing:1x9-speed, 1x10-speed, 1x11-speed, 1x12-speedTechnical Information:Offset:6 mmChainline:49 mmMaterial:aluminium (7075-T6)Compatibility:Crank: SRAM Direct Mount GXP cranks, DUB cranks and BB30 cranks with long axle (101.5 mm) Chain: all 9-, 10- and 11-speed chainsSRAM Eagle, KMC, Connex and Wippermann 12-speed chains10-speed chain recommended for 9-speed drivetrainsFeatures:Wolf Tooth Wide-Narrow designstandard chainline (6 mm offset) for 135/142 mm over locknut dimensionsalso suitable for fat bikes with 170/177 mm over locknut dimensionsMade in the USA Note from the manufacturer:Please reuse the 3 original spider bolts to directly mount the chainring or buy Wolf Tooth spare bolts (installing/removing is best done with T25 L-key). Damped rear derailleur recommended.Technology:Drop-Stop® A Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud. In the A version, the original version of Drop-Stop, the profile is optimized for use on mountain bikes. The wide teeth are slightly wider than Drop-Stop B. The outer sides of the narrow and wide teeth guide the chain. Manufacturer Numbers:26 tooth:ASM5SDM2628 tooth:ASM5SDM2830 tooth:ASM5SDM3032 tooth:ASM5SDM3234 tooth:ASM5SDM3436 tooth:ASM5SDM3638 tooth:SDM3840 tooth:SDM40 sold-out42 tooth:SDM42 sold-outContents:1 x Wolf Tooth Components Direct Mount SRAM GXP chainring Weight: black | 26 : 52 g black | 32 : 70 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
