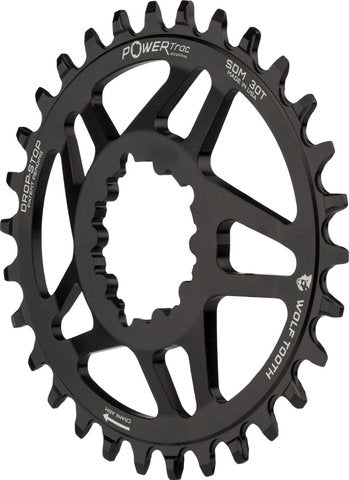

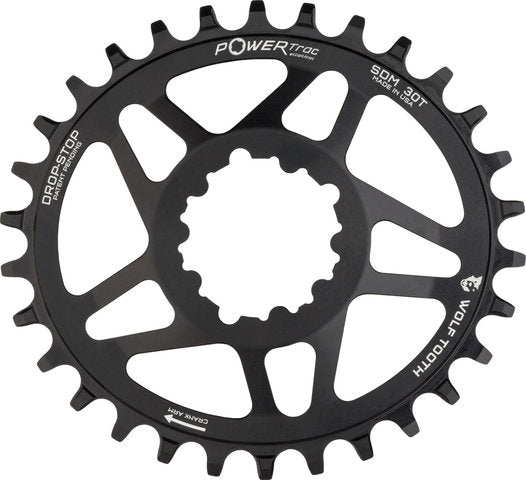

Wolf tooth components elliptical direct mount chainring for sram gxp

Product Description More power and more traction: the Elliptical Direct Mount SRAM chainrings by Wolf Tooth Components More power? Check! More traction? Of course! Fewer shift? Yup! Uneven pedal stroke? Not with the PowerTrac Elliptical™ (PTE) chainrings by Wolf Tooth! Their very own design is characterised by slightly less ovality (10%) and slightly less aggressive timing (112°) compared to other oval chainrings. That's why pedalling feels unchanged for most users and yet they still benefit from the performance and traction advantages that oval chainrings provide. Specifications:Application:Cross Country, All MountainMount:SRAM Direct MountTeeth:28 T, 30 T, 32 T, 34 TGearing:1x9-speed, 1x10-speed, 1x11-speed, 1x12-speedType:10 % ovalTechnical Information:Offset:6 mmChainline:49 mmMaterial:aluminium (7075-T6)Compatibility:Crank: SRAM Direct Mount GXP cranks, DUB cranks and BB30 cranks with long axle (101.5 mm) Chain: all 9-, 10- and 11-speed chainsSRAM Eagle, KMC, Connex and Wippermann 12-speed chains10-speed chain recommended for 9-speed drivetrainsFeatures:Wolf Tooth PowerTrac Elliptical and Wide-Narrow designincreased and more even pedalling performance, more efficiency in the recovery zone and more traction thanks to constant torquetiming: 112° to TDC (Top Dead Center)standard chainline (6 mm offset) for 135/142 mm over locknut dimensionsalso suitable for fat bikes with 170/177 mm over locknut dimensionsMade in the USA Note from the manufacturer:Please reuse the 3 original spider bolts to directly mount the chainring or buy Wolf Tooth spare bolts (installing/removing is best done with T25 L-key). Damped rear derailleur recommended.Technology:PowerTrac Elliptical™ (PTE) Wolf Tooth's PowerTrac Elliptical chainrings feature 10% ovality, in combination with 112° timing, which is measured according to the Top Dead Center (TDC). This means that the chainring section with a wider diameter engages the chain at the optimum point in the downward movement, the power zone. In this way the natural biomechanics of the body are taken into account. PTE is like having two chain rings in one. This is because your pedal stroke is biomechanically weakest when your pedals are at the upper and lower positions of the circle (at 11 to 1 o'clock and 5 to 7 o'clock on a dial), also known as the " recovery zone" . Thanks to the oval shape of the chainrings, the narrower section grips at this stage, which makes it seem as if you have two chainring teeth less. It's as if you were instantly shifting to a smaller chainring, for example from 34 to 32 tooth. The reverse is true for the power zone of your pedal stroke - when your front pedal is at 1 to 5 o'clock. Here, when your legs are at their strongest and most efficient, the PowerTrac elliptical has a wide diameter and works as if you have two extra chainring teeth, about 36 instead of 34. The whole thing also benefits traction. The torque on the rear wheel is more even, so the probability of you overpowering and slipping in the power zone is reduced. It also makes pedalling easier in the recovery zone and maintains momentum. This " 2 chainrings-in-1" effect keeps the pedal stroke smooth and the torque constant at every stroke. Drop-Stop® A Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud. In the A version, the original version of Drop-Stop, the profile is optimized for use on mountain bikes. The wide teeth are slightly wider than Drop-Stop B. The outer sides of the narrow and wide teeth guide the chain. Manufacturer Numbers:28 tooth:OVALSDM2830 tooth:OVALSDM3032 tooth:OVALSDM3234 tooth:OVALSDM34Contents:1 x Wolf Tooth Components Elliptical Direct Mount SRAM GXP chainring Weight: black | 30 : 68 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
