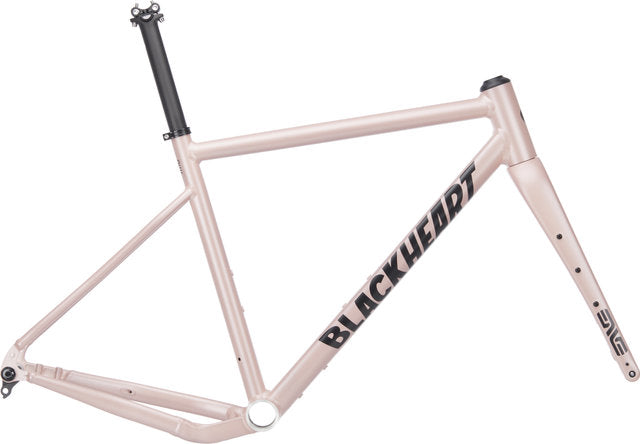

Blackheart gravel al frame kit

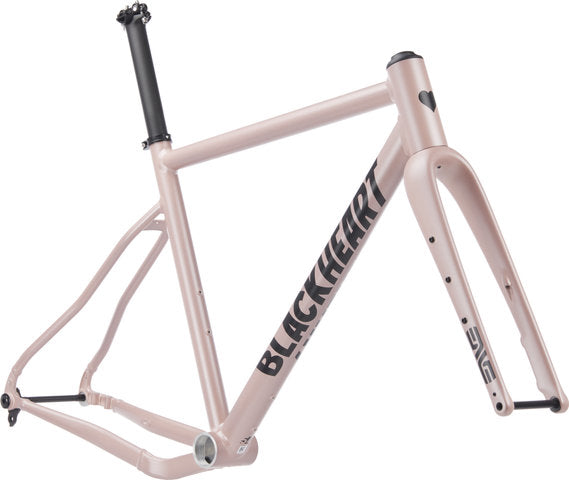

Product Description Discover the ultimate Gravel AL frameset by Blackheart designed for both men and women who demand versatility and performance on every ride. This frame is engineered with a lightweight aluminum body and a cutting-edge carbon fork, offering the perfect balance of strength and agility for gravel grinding adventures. The seatpost diameter is a robust 31.6 mm, secured with a bolt design for a reliable fit. Compatible with disc brakes up to 160 mm both front and rear, it ensures exceptional stopping power in all conditions. The T47 bottom bracket standard and a housing width of 85.5 mm provide a sturdy and noise-free drivetrain foundation. With maximum chainring sizes accommodating up to 1x 48 T and 2x configurations for both Shimano and SRAM, this frame is versatile enough to tackle steep climbs and fast flats. The wheel standard supports 12 x 100 mm front and 12 x 142 mm rear hubs, making it compatible with a wide range of wheelsets. Designed for 28" wheels and featuring a flat mount brake system, this gravel bike frame is ready to conquer both the road less traveled and your next race. Whether you're setting up for a single chainring or a double, this frame adapts to your riding style, making it the ideal choice for gravel enthusiasts seeking a high-performance, adaptable bike frame. Product Specifications: Application:Gravel Wheel size:28" Housing Width:85,5 mm seat clamp type:Bolt Brake Type:disc Compatible Saddle Rails:7 x 7 mm (Standard) Frame material:Aluminum Fork material:Carbon Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 53 mm | L | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 53 mm | L | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 55 mm | S | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 55 mm | S | 28": Wheel size:28" Gender:Women's, Men´s frozen berry | 1 1/8" - 1,5" tapered | 55 mm | M | 28": Wheel size:28" Gender:Women's, Men´s desert sage | 1 1/8" - 1,5" tapered | 55 mm | M | 28": Wheel size:28" Gender:Women's, Men´s Technical Information: Seatpost diameter:31,6 mm Brake Mount:Flat Mount Wheel Standard:12 x 100 mm (Standard), 12 x 142 mm (Standard) Bottom bracket standard:T47 frozen berry | 1 1/8" - 1,5" tapered | 53 mm | L | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered desert sage | 1 1/8" - 1,5" tapered | 53 mm | L | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:53 mm desert sage | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": Fork Offset:53 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": Steerer Tube:1 1/8" - 1,5" tapered Fork Offset:55 mm desert sage | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered desert sage | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 55 mm | S | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered desert sage | 1 1/8" - 1,5" tapered | 55 mm | S | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered frozen berry | 1 1/8" - 1,5" tapered | 55 mm | M | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered desert sage | 1 1/8" - 1,5" tapered | 55 mm | M | 28": Fork Offset:55 mm Steerer Tube:1 1/8" - 1,5" tapered Approved For: Max. Fork Length:395 mm Chainring Count Compatibility:1x, 2x Max. Disc Brake Size Front:160 mm Max. Disc Brake Size Rear:160 mm Max. Chainring Size:1x 48 T, 2x 31-48 T (Shimano), 2x 33-46 T (SRAM Wide Double) Max Tire Size Rear:47-622 (700 x 47C) Product Features: Versatile gravel bike frame designed for both men and women, featuring a robust aluminum frame and a lightweight carbon fork for a blend of durability and performance.Accommodates a wide range of seatpost diameters with a 31.6 mm specification, ensuring compatibility with various seatpost options.Utilizes a T47 bottom bracket standard, offering a reliable and sturdy foundation for both 1x (electronic, mechanical) and 2x (electronic only) chainring setups.Supports maximum disc brake sizes of 160 mm at both the front and rear, providing ample stopping power for gravel riding adventures.Compatible with wheel sizes of 28" and wheel standards of 12 x 100 mm (front) and 12 x 142 mm (rear), allowing for a variety of wheel and tire setups to match any terrain.Designed with a bolt-on seatpost design and flat mount brake system, ensuring a secure fit and sleek integration for disc brakes.UDH rear derailleur hanger Geometry: frozen berry | 1 1/8" - 1,5" tapered | 53 mm | L | 28": Head Tube Angle:71.25 Stack:570 mm Standover Height:785 mm Wheelbase:1052 mm Reach:407 mm Seat Tube Angle:74 BB Drop:73 mm Stem Length:90 mm Top Tube Length:570 mm Frame Size:56 cm Recommended Rider Height:178 - 183 cm Drop Bar Width:420 cm Seat Tube Length:515 mm Head Tube Length:150 mm desert sage | 1 1/8" - 1,5" tapered | 53 mm | L | 28": Head Tube Angle:71.25 Stack:570 mm Standover Height:785 mm Wheelbase:1052 mm Reach:407 mm Seat Tube Angle:74 BB Drop:73 mm Stem Length:90 mm Top Tube Length:570 mm Frame Size:56 cm Recommended Rider Height:178 - 183 cm Drop Bar Width:420 cm Seat Tube Length:515 mm Head Tube Length:150 mm frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": Head Tube Angle:71.5 Stack:585 mm Standover Height:800 mm Wheelbase:1060 mm Reach:412 mm Seat Tube Angle:74 BB Drop:73 mm Head Tube Length:165 mm Stem Length:90 mm Top Tube Length:580 mm Frame Size:58 cm Recommended Rider Height:183 - 188 cm Drop Bar Width:420 cm Seat Tube Length:530 mm desert sage | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": Head Tube Angle:71.5 Stack:585 mm Standover Height:800 mm Wheelbase:1060 mm Reach:412 mm Seat Tube Angle:74 BB Drop:73 mm Stem Length:90 mm Top Tube Length:580 mm Frame Size:58 cm Recommended Rider Height:183 - 188 cm Drop Bar Width:420 cm Seat Tube Length:530 mm Head Tube Length:165 mm frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": Head Tube Angle:71.5 Stack:599 mm Standover Height:815 mm Wheelbase:1076 mm Reach:422 mm Seat Tube Angle:73.5 BB Drop:72 mm Stem Length:90 mm Top Tube Length:600 mm Frame Size:60 cm Recommended Rider Height:188 - 193 cm Drop Bar Width:440 cm Seat Tube Length:545 mm Head Tube Length:180 mm desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": Head Tube Angle:71.5 Stack:599 mm Standover Height:815 mm Wheelbase:1076 mm Reach:422 mm Seat Tube Angle:73.5 BB Drop:72 mm Stem Length:90 mm Top Tube Length:600 mm Frame Size:60 cm Recommended Rider Height:188 - 193 cm Drop Bar Width:440 cm Seat Tube Length:545 mm Head Tube Length:180 mm frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": Head Tube Angle:71.5 Stack:617 mm Standover Height:830 mm Wheelbase:1091 mm Reach:433 mm Seat Tube Angle:73.5 BB Drop:72 mm Stem Length:90 mm Top Tube Length:615 mm Frame Size:62 cm Recommended Rider Height:193 - 200 cm Drop Bar Width:440 cm Seat Tube Length:565 mm Head Tube Length:200 mm desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": Head Tube Angle:71.5 Stack:617 mm Standover Height:830 mm Wheelbase:1091 mm Reach:433 mm Seat Tube Angle:73.5 BB Drop:72 mm Top Tube Length:615 mm Frame Size:62 cm Drop Bar Width:440 cm Seat Tube Length:565 mm Head Tube Length:200 mm Stem Length:90 mm Recommended Rider Height:193 - 200 cm frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": Head Tube Angle:71 Stack:517 mm Standover Height:725 mm Wheelbase:1023 mm Reach:392 mm Seat Tube Angle:74.5 BB Drop:74 mm Stem Length:70 mm Top Tube Length:535 mm Frame Size:46 cm Recommended Rider Height:152 - 160 cm Drop Bar Width:400 cm Seat Tube Length:440 mm Head Tube Length:95 mm desert sage | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": Head Tube Angle:71 Stack:517 mm Standover Height:725 mm Wheelbase:1023 mm Reach:392 mm Seat Tube Angle:74.5 BB Drop:74 mm Stem Length:70 mm Top Tube Length:535 mm Frame Size:46 cm Recommended Rider Height:152 - 160 cm Drop Bar Width:400 cm Seat Tube Length:440 mm Head Tube Length:95 mm frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": Head Tube Angle:71 Stack:527 mm Standover Height:740 mm Wheelbase:1029 mm Reach:394 mm Seat Tube Angle:74.5 BB Drop:74 mm Stem Length:80 mm Top Tube Length:540 mm Frame Size:49 cm Recommended Rider Height:160 - 168 cm Drop Bar Width:400 cm Seat Tube Length:460 mm Head Tube Length:105 mm desert sage | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": Head Tube Angle:71 Stack:527 mm Standover Height:740 mm Wheelbase:1029 mm Reach:394 mm Seat Tube Angle:74.5 BB Drop:74 mm Stem Length:80 mm Top Tube Length:540 mm Frame Size:49 cm Recommended Rider Height:160 - 168 cm Drop Bar Width:400 cm Seat Tube Length:460 mm Head Tube Length:105 mm frozen berry | 1 1/8" - 1,5" tapered | 55 mm | S | 28": Head Tube Angle:71 Stack:541 mm Standover Height:755 mm Wheelbase:1034 mm Reach:395 mm Seat Tube Angle:74.5 BB Drop:74 mm Drop Bar Width:400 cm Seat Tube Length:480 mm Head Tube Length:120 mm Stem Length:90 mm Top Tube Length:545 mm Frame Size:52 cm Recommended Rider Height:168 - 173 cm desert sage | 1 1/8" - 1,5" tapered | 55 mm | S | 28": Head Tube Angle:71 Stack:541 mm Standover Height:755 mm Wheelbase:1034 mm Reach:395 mm Seat Tube Angle:74.5 BB Drop:74 mm Stem Length:90 mm Top Tube Length:545 mm Frame Size:52 cm Recommended Rider Height:168 - 173 cm Drop Bar Width:400 cm Seat Tube Length:480 mm Head Tube Length:120 mm frozen berry | 1 1/8" - 1,5" tapered | 55 mm | M | 28": Head Tube Angle:71.25 Stack:555 mm Standover Height:770 mm Wheelbase:1043 mm Reach:401 mm Seat Tube Angle:74 BB Drop:73 mm Stem Length:90 mm Top Tube Length:560 mm Frame Size:54 cm Recommended Rider Height:173 - 178 cm Drop Bar Width:420 cm Seat Tube Length:500 mm Head Tube Length:135 mm desert sage | 1 1/8" - 1,5" tapered | 55 mm | M | 28": Head Tube Angle:71.25 Stack:555 mm Standover Height:770 mm Wheelbase:1043 mm Reach:401 mm Seat Tube Angle:74 BB Drop:73 mm Stem Length:90 mm Top Tube Length:560 mm Frame Size:54 cm Recommended Rider Height:173 - 178 cm Drop Bar Width:420 cm Seat Tube Length:500 mm Head Tube Length:135 mm Manufacturer Number: frozen berry | 1 1/8" - 1,5" tapered | 53 mm | L | 28": 25BHGAFB56 desert sage | 1 1/8" - 1,5" tapered | 53 mm | L | 28": 25BHGADS56 frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": 25BHGAFB58 desert sage | 1 1/8" - 1,5" tapered | 53 mm | XL | 28": 25BHGADS58 frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": 25BHGAFB60 desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXL | 28": 25BHGADS60 frozen berry | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": 25BHGAFB62 desert sage | 1 1/8" - 1,5" tapered | 53 mm | XXXL | 28": 25BHGADS62 frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": 25BHGAFB46 desert sage | 1 1/8" - 1,5" tapered | 55 mm | XXS | 28": 25BHGADS46 frozen berry | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": 25BHGAFB49 desert sage | 1 1/8" - 1,5" tapered | 55 mm | XS | 28": 25BHGADS49 frozen berry | 1 1/8" - 1,5" tapered | 55 mm | S | 28": 25BHGAFB52 desert sage | 1 1/8" - 1,5" tapered | 55 mm | S | 28": 25BHGADS52 frozen berry | 1 1/8" - 1,5" tapered | 55 mm | M | 28": 25BHGAFB54 desert sage | 1 1/8" - 1,5" tapered | 55 mm | M | 28": 25BHGADS54 Contents: 1 x Blackheart Gravel AL frame 1 x Fork 1 x Headset 1 x Seatpost 1 x Seatpost clamp 2 x Thru-axle 1 x Spare derailleur hanger Manufacturer: BlackHeart Bike Company 10219 Worchester Circle Truckee CA 96161 USA hello@blackheartbikeco.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
