Blackheart road ti frame kit

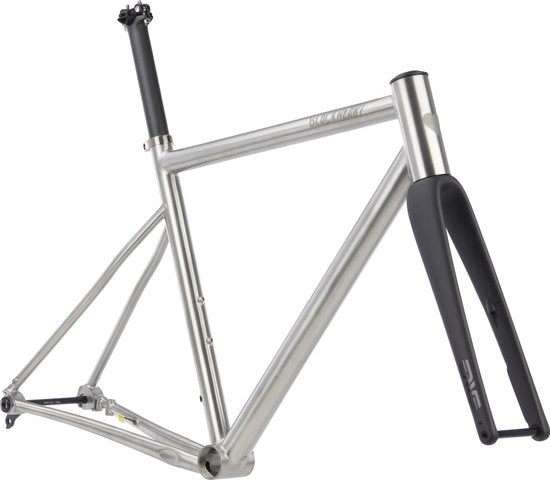

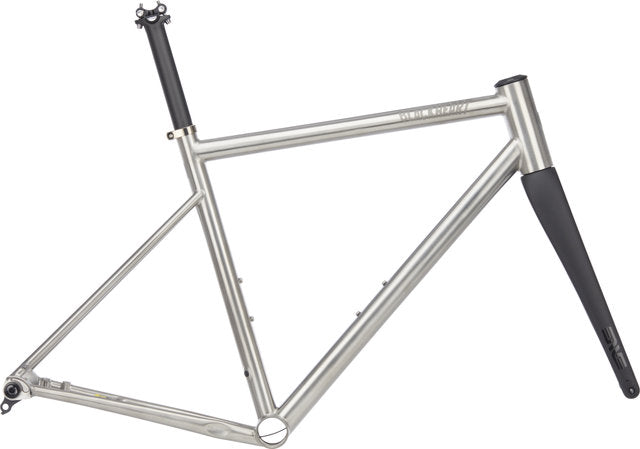

Product Description Discover the ultimate Road Ti frameset from Blackheart, featuring a titanium frame and carbon fork that not only deliver stunning aesthetics but also outstanding riding performance. This frameset is specifically designed for road use and appeals to every road cycling enthusiast. To meet the clean, modern aesthetic and ensure optimal aerodynamics, the Road Ti frame is built exclusively for electronic 1x or 2x drivetrains. It features a modern disc brake mount, UDH derailleur hanger, and a T47 bottom bracket standard. The fork, made of lightweight carbon, includes internal cable routing. With a maximum tire clearance of 34 mm in the rear and 35 mm in the front, it offers great flexibility in tire choice. A seatpost diameter of 31.6 mm and compatibility with 7 x 9 mm high-oval saddle rails allow for a wide range of adjustments to achieve the perfect seating position. Whether you're an experienced road cyclist or just getting started, this frameset will exceed your expectations and inspire you on every ride. Product Specifications: Application:Road Brake Type:disc seat clamp type:Bolt Wheel size:28" Housing Width:68 mm Compatible Saddle Rails:7 x 9 mm (High Oval) Frame material:Titanium Fork material:Carbon Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXS | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XS | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | S | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | M | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | L | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XL | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXL | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXL | 28": Wheel size:28" Gender:Women's, Men´s titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXXL | 28": Wheel size:28" Gender:Women's, Men´s Technical Information: Brake Mount:Rim Brake Wheel Standard:12 x 100 mm (Standard), 12 x 142 mm (Standard) Seatpost diameter:31,6 mm Bottom bracket standard:T47 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXS | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XS | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | S | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | M | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | L | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XL | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXL | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXL | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXXL | 28": Steerer Tube:1 1/8" - 1 1/4" tapered Fork Offset:43 mm Clamp Diameter:31,6 mm Approved For: Chainring Count Compatibility:1x, 2x Weight Limit:125 kgRider Max. Fork Length:371 mm Max. Disc Brake Size Front:160 mm Max. Disc Brake Size Rear:160 mm Product Features: Versatile road bike frame designed for both men and women, featuring a sleek titanium construction for durability and lightweight performance.Equipped with a carbon fork that supports a maximum disc brake size of 160 mm, ensuring superior stopping power and control.Compatible with a T47 bottom bracket standard, offering a robust and reliable foundation for smooth pedaling efficiency.Designed to accommodate electronic 1x and 2x setups, making it ideal for a wide range of road cycling applications from racing to long-distance rides.Features a 31.6 mm seatpost diameter with a bolt design for secure and adjustable saddle positioning, compatible with 7 x 9 mm high oval saddle rails.Supports both 12 x 142 mm and 12 x 100 mm wheel standards for flexibility in wheel and tire choices, enhancing performance on various road conditions.UDH derailleur hanger. Geometry: titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXS | 28": Head Tube Angle:71.5 Stack:515 mm Standover Height:675 mm Wheelbase:969 mm Reach:372 mm Chainstay Length:410 mm Seat Tube Angle:75.5 BB Drop:74 mm Recommended Rider Height:152 - 160 cm Head Tube Length:110 mm Seat Tube Length:440 mm Top Tube Length:505 mm Frame Size:46 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XS | 28": Head Tube Angle:72 Stack:526 mm Standover Height:700 mm Wheelbase:969 mm Reach:374 mm Chainstay Length:410 mm Seat Tube Angle:75 BB Drop:74 mm Head Tube Length:120 mm Seat Tube Length:460 mm Top Tube Length:515 mm Recommended Rider Height:160 - 168 cm Frame Size:49 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | S | 28": Head Tube Angle:72.5 Stack:538 mm Standover Height:725 mm Wheelbase:970 mm Reach:376 mm Chainstay Length:410 mm Seat Tube Angle:74.5 BB Drop:74 mm Recommended Rider Height:168 - 173 cm Head Tube Length:130 mm Seat Tube Length:480 mm Top Tube Length:525 mm Frame Size:52 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | M | 28": Head Tube Angle:73 Stack:552 mm Standover Height:750 mm Wheelbase:977 mm Reach:382 mm Chainstay Length:410 mm Seat Tube Angle:74 BB Drop:73 mm Recommended Rider Height:173 - 178 cm Head Tube Length:145 mm Seat Tube Length:500 mm Top Tube Length:540 mm Frame Size:54 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | L | 28": Head Tube Angle:73 Stack:567 mm Standover Height:775 mm Wheelbase:987 mm Reach:387 mm Chainstay Length:410 mm Seat Tube Angle:73.5 BB Drop:73 mm Head Tube Length:160 mm Seat Tube Length:515 mm Recommended Rider Height:178 - 183 cm Top Tube Length:555 mm Frame Size:56 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XL | 28": Head Tube Angle:73.5 Stack:583 mm Standover Height:800 mm Wheelbase:992 mm Reach:392 mm Chainstay Length:410 mm Seat Tube Angle:73.5 BB Drop:73 mm Recommended Rider Height:183 - 188 cm Head Tube Length:175 mm Seat Tube Length:530 mm Top Tube Length:565 mm Frame Size:58 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXL | 28": Head Tube Angle:73.5 Stack:596 mm Standover Height:825 mm Wheelbase:1007 mm Reach:403 mm Chainstay Length:410 mm Seat Tube Angle:73.5 BB Drop:72 mm Recommended Rider Height:188 - 193 cm Head Tube Length:190 mm Seat Tube Length:545 mm Top Tube Length:580 mm Frame Size:60 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXL | 28": Head Tube Angle:74 Stack:617 mm Standover Height:850 mm Wheelbase:1016 mm Reach:411 mm Chainstay Length:410 mm Seat Tube Angle:73 BB Drop:72 mm Recommended Rider Height:193 - 201 cm Head Tube Length:210 mm Seat Tube Length:565 mm Top Tube Length:600 mm Frame Size:62 cm titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXXL | 28": Head Tube Angle:74 Stack:636 mm Standover Height:875 mm Wheelbase:1036 mm Reach:425 mm Chainstay Length:410 mm Seat Tube Angle:73 BB Drop:72 mm Recommended Rider Height:198 - 213 cm Head Tube Length:230 mm Seat Tube Length:585 mm Top Tube Length:620 mm Frame Size:64 cm Manufacturer Number: titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXS | 28": 25BHRTBR46 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XS | 28": 25BHRTBR49 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | S | 28": 25BHRTBR52 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | M | 28": 25BHRTBR54 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | L | 28": 25BHRTBR56 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XL | 28": 25BHRTBR58 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXL | 28": 25BHRTBR60 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXL | 28": 25BHRTBR62 titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | XXXXL | 28": 25BHRTBR64 Contents: 1 x BLACKHEART BIKE Road Ti frameset 1 x Fork 1 x Headset 1 x Seatpost 1 x Seatpost clamp 2 x Thru-axles 1 x Spare derailleur hanger Weight: titanium brushed | 1 1/8" - 1 1/4" tapered | 43 mm | M | 28": 1650 g,nur Rahmen Manufacturer: BlackHeart Bike Company 10219 Worchester Circle Truckee CA 96161 USA hello@blackheartbikeco.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
