Transition sentinel carbon frame kit model 2025

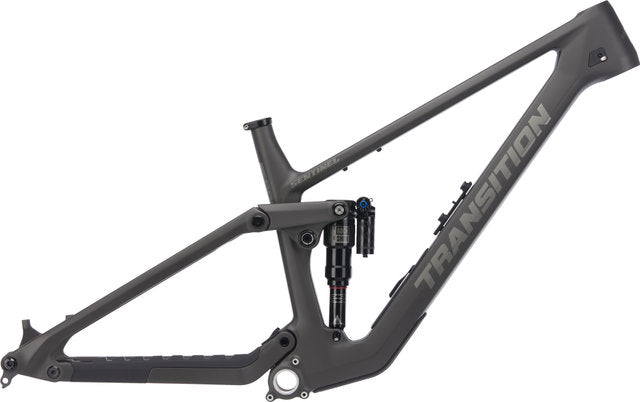

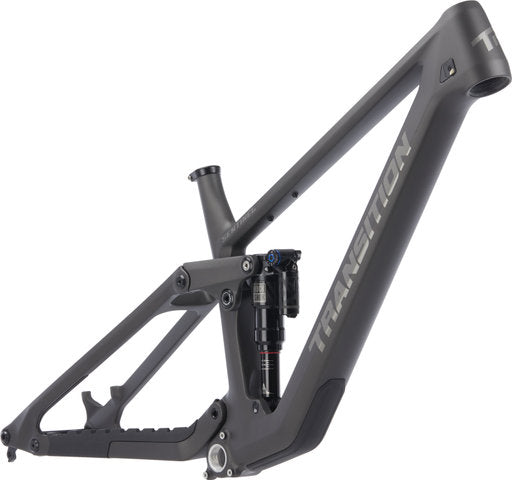

Product Description Unleash your mountain biking dreams with our cutting-edge Transition Sentinel carbon frame, designed for both men and women who demand the best in performance and style. This masterpiece is engineered with a 1 1/8" - 1.5" tapered steerer tube, perfectly complementing the lightweight and robust carbon construction of both the frame and rear triangle. The frame's design is not just about looks; it's built for serious riding with a bolt design and a Trunnion mount rear shock, delivering a smooth 60mm of shock travel. Compatibility with up to a 34T chainring and a 1x drivetrain setup ensures you have the power and range to tackle steep climbs without the need for a front derailleur. The 205mm shock length is meticulously chosen to balance responsiveness and comfort, enhancing your ride on all terrains. With the capability to accommodate disc brakes up to 223mm, you're guaranteed powerful stopping power in all conditions. The frame's geometry is optimized for 29" wheels, allowing you to roll over obstacles with ease, supported by a 12 x 148 mm (Boost) wheel standard for that extra stability and responsiveness. For those who push their limits, the frame supports a maximum tire size of 29 x 2.5", ensuring you can tackle the most challenging trails with confidence. Dive into all-mountain adventures with this frame's disc PM7 brake mount, designed for direct mount 180 mm brakes, offering unparalleled control and safety. Whether you're aiming to conquer new peaks or improve your trail times, this carbon frame is your ticket to elevating your mountain biking experience. Product Specifications: Application:All Mountain, MTB Brake Type:disc Wheel size:29" Rear triangle material:Carbon seat clamp type:Bolt Housing Width:73 mm Frame material:Carbon Gender:Women's, Men´s Technical Information: Rear Shock Mount:Trunnion Mount Front Derailleur Mount:No Front Derailleur Mount Possible Shock Length:205 mm Shock Travel:60 mm Seatpost diameter:31,6 mm Brake Mount:Disc PM7 (Direct Mount 180 mm) Wheel Standard:12 x 148 mm (Boost) Shock Mount Width:30 x 8 mm Recommended Steerer Tube:1 1/8" - 1,5" tapered Chainline:52 - 55 mm graphite grey | M: Clamp Diameter:37 mm graphite grey | L: Clamp Diameter:37 mm graphite grey | XL: Clamp Diameter:37 mm Approved For: Max. Disc Brake Size Rear:223 mm Chainring Count Compatibility:1x Max. Chainring Size:1x 34T Max Tire Size Rear:29 x 2,5" Product Features: High-performance carbon MTB frame designed for both women and men, optimized for all-mountain adventures.Features a 1 1/8" - 1.5" tapered steerer tube, accommodating modern suspension forks for precise steering.Equipped with a Trunnion mount rear shock, providing 60mm of travel for smooth handling over rough terrain.Supports a max disc brake size of 223mm at the rear, ensuring superior stopping power in all conditions.Designed for a 1x drivetrain with a maximum chainring size of 34T, ensuring efficient power transfer and simplicity.Compatible with 29" wheels and tires up to 29 x 2.5", offering excellent traction and roll-over capabilities on challenging trails. Geometry: graphite grey | M: Seat Tube Length:390 mm Head Tube Length:110 mm BB Drop:25 mm,11 mm Head Tube Angle:64 Stack:621 mm,624 mm Wheelbase:1237 mm Reach:455 mm,451 mm Chainstay Length:442 mm,440 mm Seat Tube Angle:78.7 Recommended Rider Height:168 - 178 cm Effective Top Tube Length:577 mm graphite grey | L: Seat Tube Length:430 mm Head Tube Length:120 mm BB Drop:25 mm,11 mm Seat Tube Angle:78.3 Head Tube Angle:64 Stack:633 mm,636 mm Wheelbase:1273 mm Reach:480 mm,476 mm Chainstay Length:448 mm,446 mm Recommended Rider Height:178 - 188 cm Effective Top Tube Length:605 mm graphite grey | XL: Seat Tube Length:460 mm Head Tube Length:130 mm BB Drop:25 mm,11 mm Head Tube Angle:64 Stack:642 mm,646 mm Wheelbase:1302 mm Reach:505 mm,501 mm Chainstay Length:448 mm,446 mm Seat Tube Angle:77.9 Recommended Rider Height:188 - 198 cm Effective Top Tube Length:632 mm Manufacturer Number: graphite grey | M: TR-01-25-10-4317 graphite grey | L: TR-01-25-10-4320 graphite grey | XL: TR-01-25-10-4323 Contents: 1 x Transition Sentinel Carbon frame, model 2025 1 x RockShox Super Deluxe Select+ shock Manufacturer: Transition Bike Company 1600 Carolina St. Bellingham WA 98229 USA info@transitionbikes.com Distributor: bc GmbH Carlo-Schmid-Straße 12 52146 Würselen Germany info@bike-components.de
