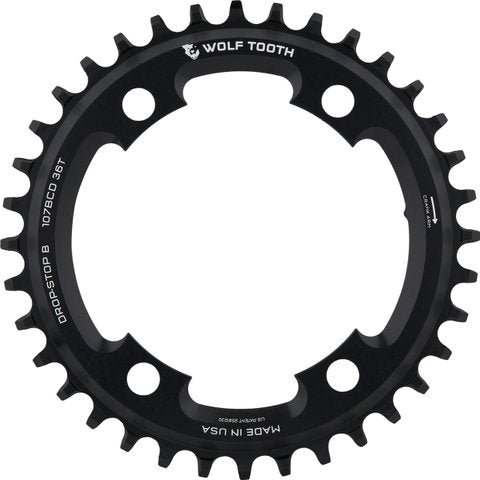

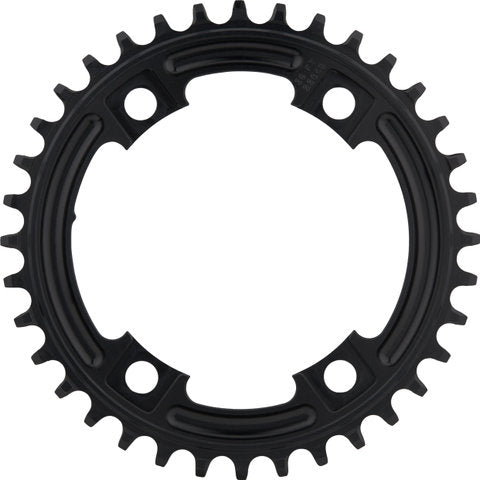

Product Description cranks with 107 mm bolt circle diameter The 107 BCD chainring from Wolf Tooth Components is compatible with SRAM 1x road cranks that have a 107 mm bolt circle diameter. Use it with 9-, 10- and 11-speed chains, SRAM Eagle or Flattop 12-speed chains. The chainring is made of aluminium and features the proven Drop-Stop® design, which ensures particularly good chain retention and excellent self-cleaning. Specifications:Application:Road, Gravel, CyclocrossMount:107 mm pitch circle, 4-arm asymmetricalTeeth:36 T, 38 T, 40 T, 42 T, 44 TGearing:1x9-speed, 1x10-speed, 1x11-speed, 1x12-speedTechnical Information:Material:aluminium (7075-T6)Compatibility:Rear Over Locknut Dimension: quick release: 135 mmthru-axle: 142 mm Crank: SRAM Road 1x cranks (Non-Wide) with 107 mm bolt circle diameter / Spider: Red 1 (FC-RED-1-D1)Force 1 AXS Power Meter (PM-FRC-1-D1)Force 1 (FC-FRC-1-D1) Chain: all 9-speed, 10-speed and 11-speed chainsSRAM Flattop, SRAM Eagle, Campagnolo, KMC, Connex and Wippermann 12-speed chainsFeatures:Wolf Tooth Wide-Narrow designoptimal chain retention and excellent self-cleaningchainline depends on crank modelMade in the USANote from the manufacturer:Damped rear derailleur recommended. For rides on very muddy terrain, an additional chain guide is recommended. Technology:Drop-Stop® B Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud. In the B version, the drop-stop profile is optimised for use on wheels with drop bars. The teeth are slightly narrower and the valleys between the teeth are deeper to accommodate the larger rollers of SRAM Flattop chains. The outer sides of the narrow and wide teeth touch the chain to guide it. Manufacturer Numbers:36 tooth:10736FT38 tooth:10738FT40 tooth:10740FT42 tooth:10742FT44 tooth:10744FTContents:1 x Weight: black | 40 : 79 g black | 42 : 78 g black | 44 : 90 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
