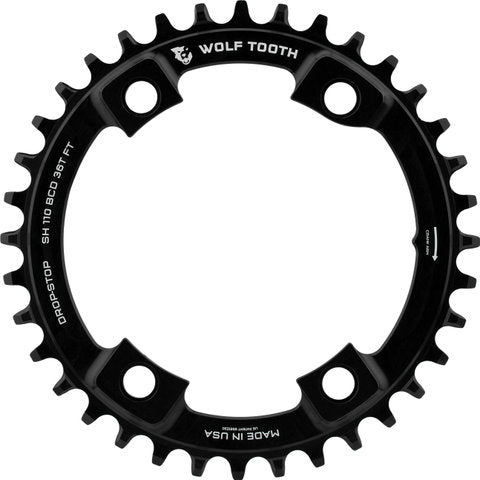

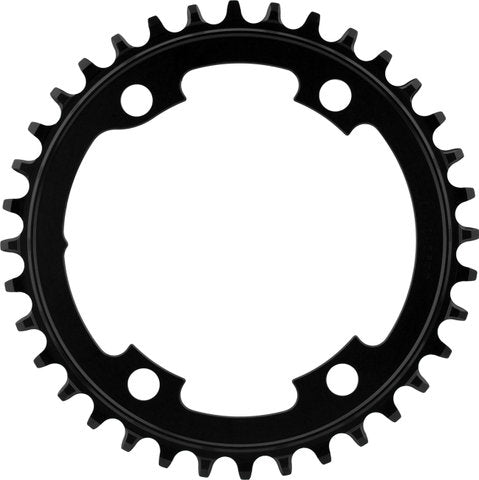

Product Description Ideal for Cyclocross: the 110 BCD Asymmetric 4-Bolt Shimano chainrings by Wolf Tooth Components Wolf Tooth was one of the first manufacturers to release Cyclocross-specific 1x chainrings, because they saw this as a perfect application for the Wolf Tooth Drop-Stop® technology. These beautifully crafted 4-arm chainrings for a 110 mm asymmetric bolt circle diameter have been optimised for Shimano 1-speed CX, road and gravel drivetrains, whether you ride Dura-Ace 9000, Ultegra 6800, 105 5800 or Tiagra 4700. They also have an offset to create the ideal 1-speed chainline. Specifications:Application:Cyclocross, Gravel, RoadMount:110 mm pitch circle, 4-arm asymmetricalTeeth:36 T, 38 T, 40 T, 42 T, 44 T, 46 T, 48 T, 50 TGearing:1x9-speed, 1x10-speed, 1x11-speed, 1x12-speedTechnical Information:Chainline:47.5 mmMaterial:aluminium (7075-T6)Compatibility:Crank: Shimano Dura-Ace 9000Shimano Dura-Ace R9100Shimano Ultegra 6800Shimano Ultegra R8000Shimano 105 5800Shimano 105 R7000Shimano Tiagra 4700/4703 Chain: all 10-speed, 11-speed, 12-speed chains except Shimano 12-speed10-speed chain recommended for 9-speed drivetrains Chainring Bolts: 6 mm long chainring bolts requiredoriginal bolts do not workFeatures:Wolf Tooth Wide-Narrow designouter mounting position , with offset to the inside for the perfect chainlineMade in the USA Note from the manufacturer:Use of a damped rear derailleur recommended. For very muddy conditions a chain guide in combination with clutch rear derailleur is recommended.Technology:Drop-Stop® Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud. Manufacturer Numbers:36 tooth:SH1103638 tooth:SH1103840 tooth:SH1104042 tooth:SH1104244 tooth:SH1104446 tooth:SH1104648 tooth:SH1104850 tooth:SH11050Contents:1 x Wolf Tooth Components 110 BCD Asymmetric 4-Bolt Shimano chainring Weight: black | 38 : 66 g black | 40 : 74 g black | 42 : 81 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
