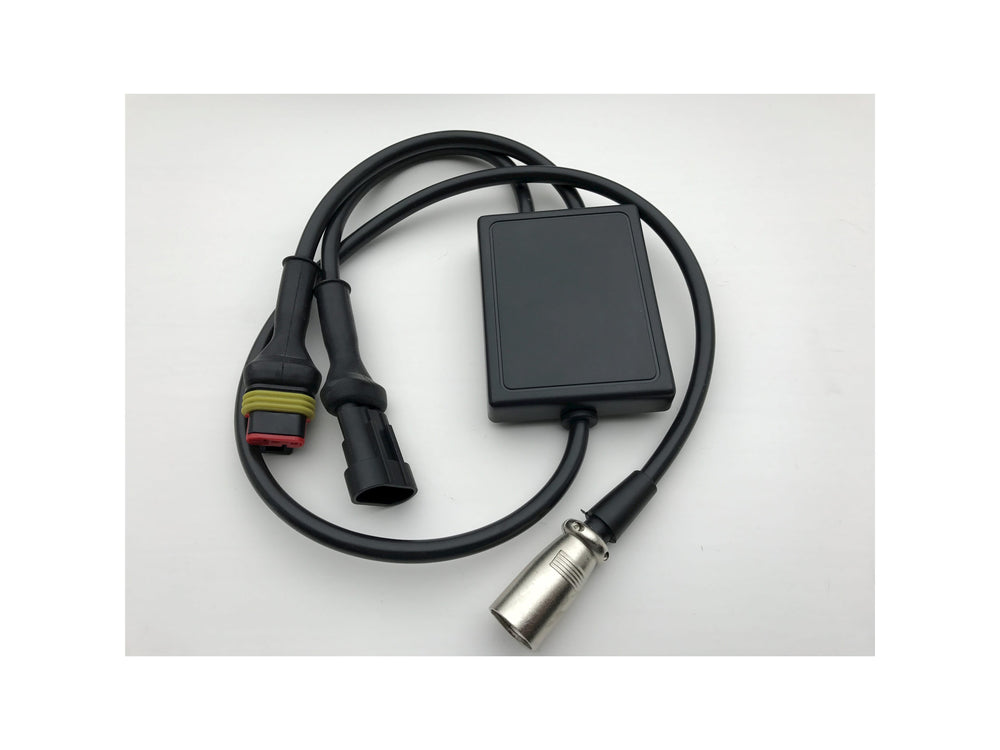

Battery Tester Cable Ion

Cable for testing Ion batteries. Also known as the banana battery, NiMH, 24V. This 24V tube battery (banana battery), NiMH, is found in the following e-bikes, among others:

• Batavus Legato easy
• Batavus Padova easy
• Sparta Ion GL model 2008 to 2012
• Sparta Ion L model 2009 to 2011
• Sparta Ion M-Gear model 2005 to 2008
• Sparta Ion MGT+ model 2008
• Sparta Ion NXT
• Ion XGT
• Sparta Amphion SDS model 2008 to 2009
• Sparta Ion Basic model 2008
• Sparta Ion City model 2005 to 2008
• Sparta Ion Classic 2008 to 2010
• Sparta Ion Comfort model 2005 to 2008
• Sparta Ion Extension model 2007
• Sparta Ion Blackline

Bikes with the small display can be tested. Testing does not work with all bikes with large displays.

Instructions:

1. Connect the cable between the battery-controller cable (near the rear wheel) and to the battery tester.
2. Turn on the bike (on the display).
3. Start the battery tester and follow the instructions.
4. Activate the bike system every 7 minutes by, for example, pressing a button on the display.

Please note: if the system has shut down, switch it on again and turn the select knob and choose the option to resume the test.

Note: It is possible that the battery indication is incorrectly displayed on the display after testing. Reset the system by interrupting the fuse at the bottom of the battery for 1 minute.
