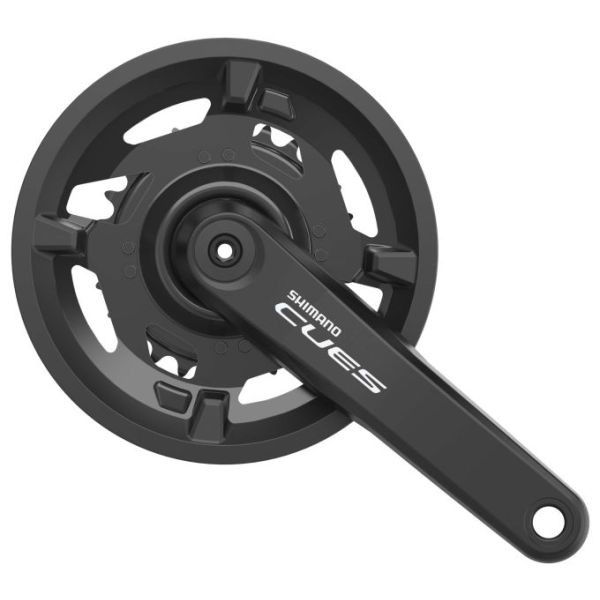

Shimano cues fc-u4000-2 square crankset w chain guard

Betrouwbare prestaties en soepel trappen op alle terreinen Geniet van de betrouwbaarheid en soepele all-terrain prestaties van dit stijve crankstel. Kenmerken:

• Q-factor: 178 millimeter
• Kettinglijn: 51,8 millimeter

Specificaties:

Model: FC-U4000-2B
• Serie: CUES U4000 Serie
• Kleur: Groepskleur
• Versnellingen achter: 11/10/9
• Compatibele ketting: LINKGLIDE, HG 11-speed (CN-HG601; CN-HG701; CN-HG901; CN-LG500)
• Kettinglijn: 51,8 mm
• Vorkafstand: Steekas 148 mm
• Vorkafstand: Intern / extern type 141
• BCD (mm): Geklonken
• Spider/armen kettingblad: 4
• Kettingbladcombinatie: 40-26 tands
• Q-factor: 178 mm
• Lengte crankarm: 170 mm
• Kettingbeschermer/optie: Zonder kettingbeschermer/beschermrand
• Compatibel type trapas; Vierkant
• Aanbevolen trapas|: BB-UN101
• Aslengte van BB-UN / ES (mm): 123 mm
• Schroefdikte met schroefdraad van de trapas: 68 / 73 mm
• Inclusief bevestigingsschroef crank

Product Description Shimano CUES FC-U4000-2 - Square crank with two chainrings and chain guard for city, touring and MTB use The CUES square crankset FC-U4000-2, here in the version with chain guard, was designed by Shimano for Linkglide drivetrains on city, touring and mountain bikes. It is suitable for 2x9-speed, 2x10-speed and 2x11-speed gears and produces a chainline of 48.8 mm. Therefore, frame over locknut dimensions of 135 mm and 142 mm are compatible. The Q-factor is 178 mm. The gradation is chosen so that it can be pedalled harmoniously and smoothly on different types of terrain. Due to its stiffness, the crank made of aluminium and steel ensures reliable performance. The four-armed steel chainrings are permanently installed via riveted joints. Thanks to the chain guard, your pants won't get caught between the chainring and the chain while riding. Specifications:Application:City, Touring, All MountainCompatibility:2x9-speed, 2x10-speed, 2x11-speedChainring Mount:4-arm (riveted)Technical Information:Series:CUES U4000Crank Arm Material:aluminiumChainring Material:steelAxle Material:steelGradation:26-40Crank Arm Length:170.0 mm, 175.0 mmChainline:48.8 mmQ-Factor:178 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-UN101 (not included)Recommended Chain:Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)Compatibility:Rear Over Locknut Dimension: quick release: 135 mmthru-axle: 142 mmBottom Bracket:BB-UN55, BB-UN26, BB-UN101, BB-UN300 (square, 123 mm axle)Shifter:SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-LFront Derailleur: 2x11-speed: FD-U6000, FC-U60102x10-speed: FD-U6000, FD-U40002x9-speed: FD-U4000Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Chain Case:not compatibleFeatures:square crank with two chainrings and chain guardfor city, touring and mountain bikes with Shimano Linkglide drivetrains (9-speed, 10-speed, 11-speed)reliable, smooth performance on various terrainwide ratio range for harmonious, comfortable pedallingpainted crank arms and chainringsManufacturer Numbers:170.0 mm 26-40:EFCU40002C06C175.0 mm 26-40:EFCU40002E06CContents:1 x Shimano CUES FC-U4000-2 crankset (26-40 tooth)1 x Shimano chain guard2 x Shimano crank bolts Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
