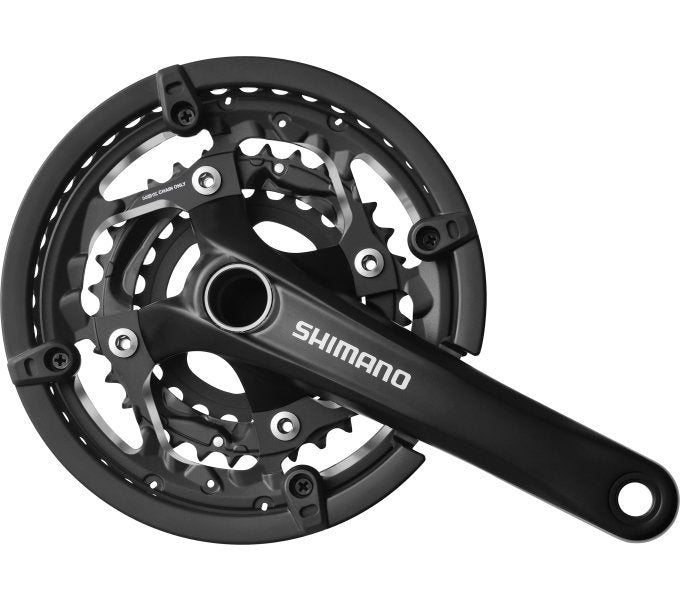

Product Description The Shimano FC-T551 crankset with chain guard - Integrated look on a touring bike The Shimano FC-T551 is an aluminium crankset in a stiff 2-piece design for city and touring use. It is equipped with three chainrings and a chain guard ring (104 or 64 mm 4-arm bolt circle diameter) and is compatible with Shimano 10-speed drivetrains. Its simple and robust design integrates perfectly on any touring bike. This crank is also chain case-compatible. Specifications:Application:City & TouringCompatibility:Shimano 3x10-speedChainring Mount:104/64 mm bolt circle diameter, 4-armTechnical Information:Crank Arm Material:aluminiumChainring Material:aluminium / aluminium / steelAxle Material:steelGradation:24-32-44, 26-36-48Crank Arm Length:170.0 mm, 175.0 mmChainline:50 mmQ-Factor:181.1 mmCompatible BSA Shell Width:68 mm / 73 mmBottom Bracket:SM-BB52 Hollowtech IIRecommended Chain:HG-X 10-speed (e.g. CN-HG95)Compatibility:Touring 3x10-speed: Shifter:SL-T8000, SL-T780, SL-M780, SL-T670, SL-M670, SL-M591, SL-T6000Front Derailleur:FD-T8000, FD-T780, FD-T781, FD-T670, FD-T671, FD-T610, FD-T611, FD-T6000Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54Features:two-piece design for precise chain guidancespecifically shaped teethsimple and robust design, integrated look of the chain guardcrank arms painted, large chainring anodised, medium/small chainring platedstainless steel chainring boltscompatible with chaincasesTechnology:2-Piece Crankset With the 2-piece designed cranks from Shimano, the right crank arm is precisely matched to the interaction with the bottom bracket. This increases the stiffness and keeps the weight low. Further spaced bearings also improve strength and contribute to more pedalling efficiency. The precision manufacturing of the bearings ensures easy installation and low maintenance. 2-Piece cranks share a 24mm axle diameter with Hollowtech II cranks, so they are also compatible with Hollowtech II bottom brackets. Manufacturer Numbers:170.0 mm 24-32-44:E-FCT551C424CL170.0 mm 26-36-48:E-FCT551C866CL175.0 mm 24-32-44:E-FCT551E424CL175.0 mm 26-36-48:E-FCT551E866CLContents:1 x Shimano FC-T551 crankset (24-32-44 or 26-36-48 tooth)1 x Shimano bottom bracket1 x Shimano chain guard4 x bottom bracket spacers for 68/73 bottom bracket shells Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
