Abi USB-C multiport adapter

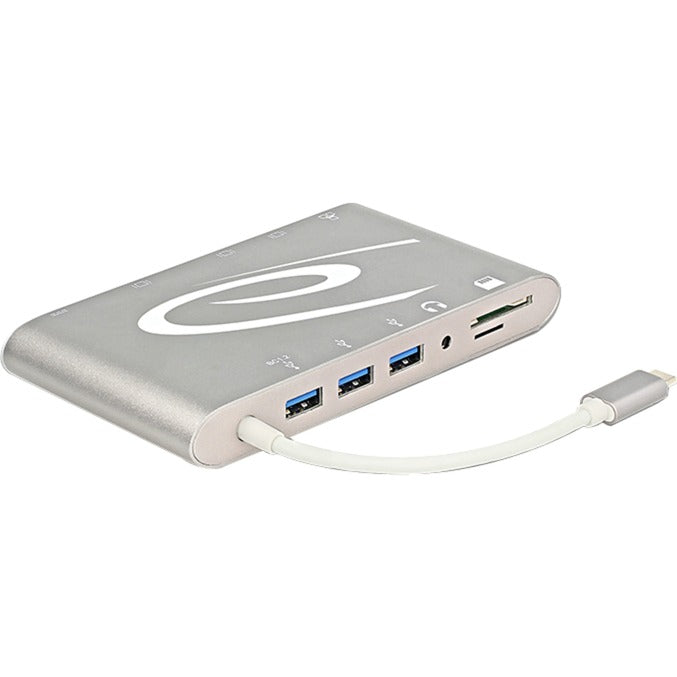

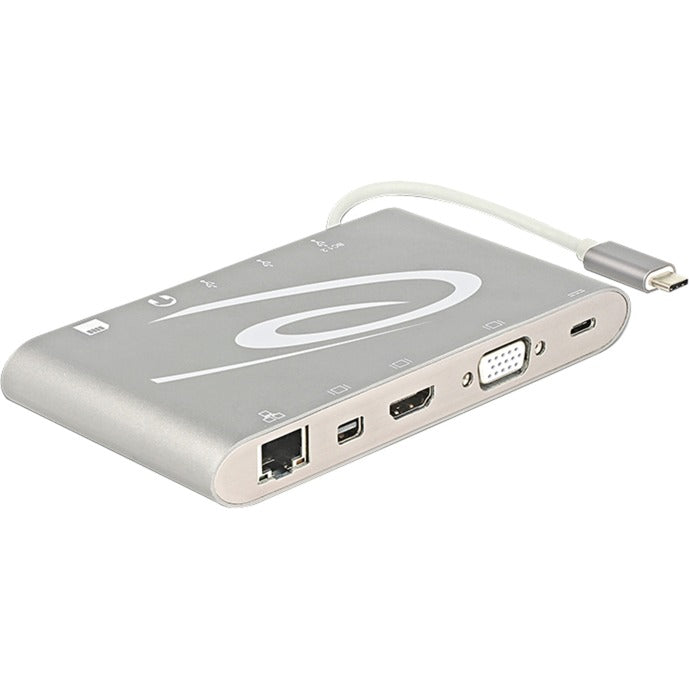

USB Type-C™ Docking Station – HDMI™ 1.4 High Speed – mini DisplayPort – VGA – LAN – USB – Card Reader – Power Delivery This USB Type-C™ docking station allows a computer with a USB Type-C™ port with DisplayPort Alternate Mode or a Thunderbolt™ 3 port to be expanded with multiple connections for video, data, network, audio, and storage. Via a single connection, two external monitors can be driven simultaneously via HDMI and mini DisplayPort, or alternatively one monitor via VGA. Host Port Requirements The USB Type-C™ port of the host device must support DisplayPort Alternate Mode. Use is also possible via Thunderbolt™ 3 ports. Without DisplayPort Alternate Mode, video output via HDMI, mini DisplayPort, and VGA is not possible. Inputs 1× USB Type-C™ male (host connection). 1× USB Type-C™ female (power, Power Delivery). Outputs 1× HDMI A female (video). 1× mini DisplayPort female (video). 1× VGA 15-pin female (video). 3× USB Type A female (USB 3.2 Gen 1×1). 1× RJ45 Gigabit LAN (10/100/1000 Mbps). 1× 3.5 mm 4-pole headset jack (audio in / out). 1× SD / SDHC / SDXC / MMC card reader. 1× microSD / SDHC / SDXC card reader. Signal Direction USB Type-C™ / Thunderbolt™ → video, USB, network, and audio. Image and Video Support HDMI and mini DisplayPort outputs support simultaneous image display via DisplayPort MST. Supported resolutions: up to 2560 × 1440 at 60 Hz or up to 3840 × 2160 at 30 Hz, depending on the system and connected hardware. VGA output supports resolutions up to 1920 × 1080 at 60 Hz. Multi-Stream Transport (MST) The docking station functions as a DisplayPort MST hub and supports extended desktop configurations according to DisplayPort 1.2. When used with macOS, the same image is displayed on HDMI and mini DisplayPort (mirroring); independent control of both outputs is not possible under macOS. HDMI Version HDMI™ 1.4 High Speed. DisplayPort Support DisplayPort 1.2 via USB Type-C™ DisplayPort Alternate Mode and Thunderbolt™ 3. VGA Output The VGA output transmits analog video signal only. Audio is not supported via VGA. Audio Audio is output via HDMI and mini DisplayPort and is also available via the 3.5 mm headset jack. Support depends on the host device and operating system. USB Functionality The three USB Type A ports support USB 3.2 Gen 1×1 with a maximum data rate of 5 Gbit/s. The maximum combined output power for USB devices is 10 W, with one port providing a maximum of 7.5 W and the other two ports collectively providing a maximum of 5 W. Network The integrated RJ45 connector supports Gigabit Ethernet with speeds up to 1000 Mbps for wired network connections. Memory Card Readers Support for SD, SDHC, SDXC, and MMC cards, as well as microSD, microSDHC, and microSDXC cards. Only one card reader can be active at a time. Power and Power Delivery The docking station supports USB Power Delivery via the USB Type-C™ power port. With an external USB-C™ power adapter, the host device can be powered up to a maximum of 60 W. The docking station can also be used without an external power supply, in which case it is powered via the host connection. Cable Fixed connection cable with a length of approximately 18 cm including connector. Specifications • Product type: USB Type-C™ docking station • Host input: 1× USB Type-C™ male • Power input: 1× USB Type-C™ female (Power Delivery) • Video outputs: HDMI A, mini DisplayPort, VGA • USB ports: 3× USB Type A (USB 3.2 Gen 1×1) • Network: RJ45 Gigabit Ethernet (10/100/1000 Mbps) • Audio connection: 3.5 mm 4-pole headset jack • Card readers: SD / SDHC / SDXC / MMC, microSD / SDHC / SDXC • Signal direction: USB Type-C™ / Thunderbolt™ → video, data, network, audio • HDMI version: HDMI™ 1.4 High Speed • DisplayPort version: DisplayPort 1.2 (Alt Mode, MST) • Max. resolution HDMI / DP: 4K@30Hz or 2560×1440@60Hz • Max. resolution VGA: 1920×1080@60Hz • USB output power: max. 10 W total • USB Power Delivery: up to 60 W • Power supply: via USB Type-C™ (bus powered or external) • Cable length: approx. 18 cm • Color: Silver-grey • Dimensions (L×W×H): approx. 13.7 × 7.5 × 1.7 cm Explanation of Used Terms • USB Type-C™: Reversible connector for data, video, and power transfer. • DisplayPort Alternate Mode: Technology that transmits DisplayPort video signals directly via a USB Type-C™ connection. • MST (Multi-Stream Transport): DisplayPort function for controlling multiple displays via a single connection. • Thunderbolt™ 3: Interface via USB-C™ that supports DisplayPort signals and high bandwidth. • USB 3.2 Gen 1×1: USB standard with a maximum data rate of 5 Gbit/s. • USB Power Delivery: Standard for supplying and passing electrical power via USB-C™. • Gigabit Ethernet: Network connection with a maximum speed of 1000 Mbps. Ask a product question
