Abi USB-C Multiport Adapter

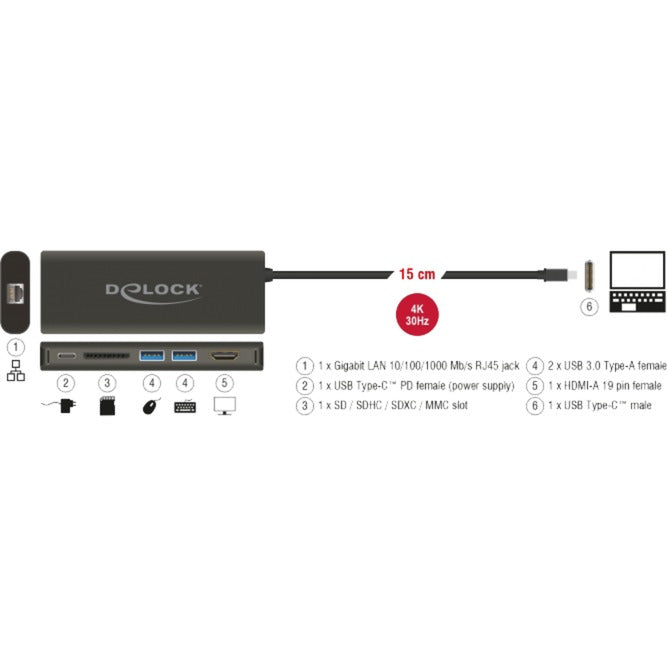

USB Type-C™ Docking Station – HDMI™ 1.4 High Speed – 4K@30Hz – LAN – USB – Card Reader – Power Delivery This USB Type-C™ docking station allows you to expand a computer with a USB Type-C™ port with DisplayPort Alternate Mode or a Thunderbolt™ 3 port with additional connections for video, data, network, and storage. Video, USB, network, and power are combined through a single connection. Host Port Requirements The USB Type-C™ port of the host device must support DisplayPort Alternate Mode. The docking station can also be used with Thunderbolt™ 3 ports. Without DisplayPort Alternate Mode, video output via HDMI is not possible. Inputs 1× USB Type-C™ male (host connection). 1× USB Type-C™ female (power, Power Delivery). Outputs 1× HDMI A female (video). 2× USB Type A female (USB 3.2 Gen 1×1). 1× RJ45 Gigabit LAN (10/100/1000 Mbps). 1× SD / SDHC / SDXC / MMC card reader. Signal Direction USB Type-C™ / Thunderbolt™ → HDMI, USB, network, and card reader. Image and Video Support Support for resolutions up to 3840 × 2160 at 30 Hz (4K@30Hz). Lower resolutions are automatically supported. The final resolution depends on the host device and the connected HDMI display. HDMI Version HDMI™ 1.4 High Speed. Audio Audio and video signals are output together via HDMI, according to the capabilities of the host device and the connected display. USB Functionality The two USB Type A ports support USB 3.2 Gen 1×1 with a maximum data rate of 5 Gbit/s. The maximum output power per USB port is 4.5 W (5 V / 0.9 A). Network The integrated RJ45 connection supports Gigabit Ethernet with speeds up to 1000 Mbps for wired network connections. Memory Card Reader Support for SD, SDHC, SDXC, and MMC memory cards. Only one card can be used simultaneously. Power and Power Delivery The docking station supports USB Power Delivery via the USB Type-C™ power port. With an external USB-C™ power adapter, the host device can be powered up to a maximum of 60 W (20 V / 3 A). The docking station can also be used without an external power supply, in which case it is powered via the host connection. Cable Fixed connection cable with a length of approximately 15 cm including connector. Specifications • Product type: USB Type-C™ docking station • Host input: 1× USB Type-C™ male • Power input: 1× USB Type-C™ female (Power Delivery) • Video output: 1× HDMI A female • USB ports: 2× USB Type A (USB 3.2 Gen 1×1) • Network: RJ45 Gigabit Ethernet (10/100/1000 Mbps) • Card reader: SD / SDHC / SDXC / MMC • Signal direction: USB Type-C™ / Thunderbolt™ → video, data, network • Chipsets: VL813, VL100, GL857L, PS176, RTL8153 • HDMI version: HDMI™ 1.4 High Speed • Max. resolution: 4K@30Hz • USB output power: max. 4.5 W per port (5 V / 0.9 A) • USB Power Delivery: up to 60 W (20 V / 3 A) • Power supply: via USB Type-C™ (bus-powered or external) • Cable length: approx. 15 cm • Color: Anthracite • Dimensions (L×W×H): approx. 116 × 46 × 16 mm Explanation of Used Terms • USB Type-C™: Reversible connector for data, video, and power transfer. • DisplayPort Alternate Mode: Technology that transmits DisplayPort video signals directly via a USB Type-C™ connection. • Thunderbolt™ 3: Interface via USB-C™ that supports DisplayPort signals and high bandwidth. • USB 3.2 Gen 1×1: USB standard with a maximum data rate of 5 Gbit/s. • USB Power Delivery: Standard for supplying and passing electrical power via USB-C™. • Gigabit Ethernet: Network connection with a maximum speed of 1000 Mbps. Ask a product question
