Abi USB-C multiport adapter

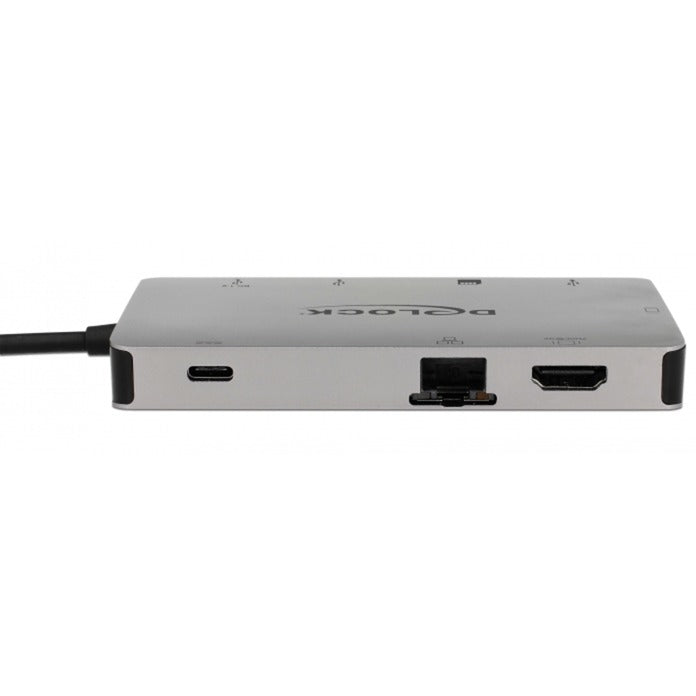

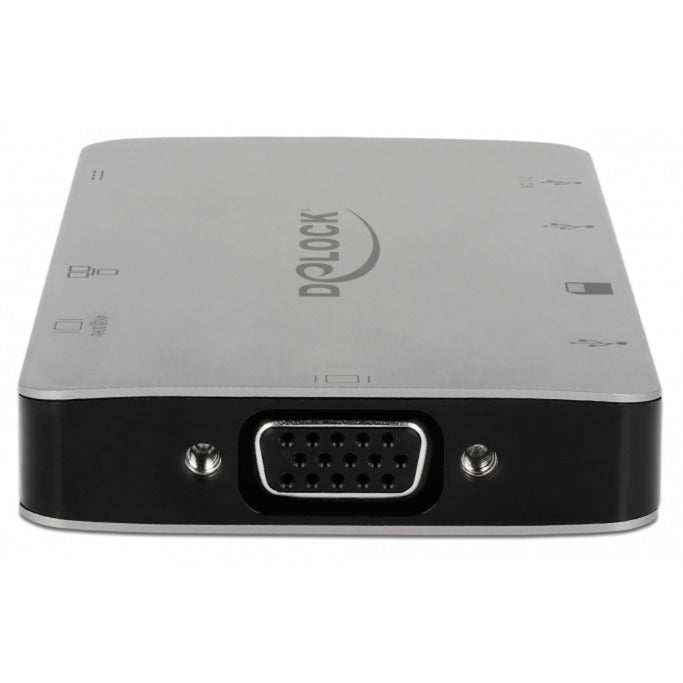

USB Type-C™ Docking Station – HDMI™ 1.4 High Speed – VGA – LAN – USB – Card Reader – Power Delivery This USB Type-C™ docking station allows you to expand a computer with a USB Type-C™ connection with DisplayPort Alternate Mode or a Thunderbolt™ 3 port with multiple connections for video, data, network, audio, and storage. Video, USB, network, and power are offered through a single connection. Host Port Requirements The USB Type-C™ port of the host device must support DisplayPort Alternate Mode. Use is also possible via Thunderbolt™ 3 ports. Without DisplayPort Alternate Mode, video output via HDMI and VGA is not possible. Inputs 1× USB Type-C™ male (host connection). 1× USB Type-C™ female (power, Power Delivery). Outputs 1× HDMI A female (video). 1× VGA 15-pin female (video). 2× USB Type A female (USB 3.2 Gen 1×1). 1× USB Type A female (USB 3.2 Gen 1×1, Battery Charging BC1.2). 1× USB Type-C™ female (USB 3.2 Gen 1×1, data). 1× RJ45 Gigabit LAN (10/100/1000 Mbps). 1× SD / SDHC / SDXC card reader. 1× microSD / SDHC / SDXC card reader. Signal Direction USB Type-C™ / Thunderbolt™ → HDMI, VGA, USB, LAN and card readers. Image and Video Support HDMI output supports resolutions up to 3840 × 2160 at 30 Hz (4K@30Hz). VGA output supports resolutions up to 1920 × 1080 at 60 Hz. The final resolution depends on the host device and the connected displays. HDMI and VGA cannot be used simultaneously at maximum resolution. HDMI Version HDMI™ 1.4 High Speed. VGA Output The VGA output only transports an analog video signal. Audio is not supported via VGA. Audio Audio is output together with the video signal via HDMI, according to the capabilities of the host device and the connected display. USB Functionality The USB ports support USB 3.2 Gen 1×1 with a maximum data transfer rate of 5 Gbit/s. The USB Type A port with BC1.2 supports increased charging current for compatible devices. Network The integrated RJ45 connection supports Ethernet speeds up to 1000 Mbps for wired network connections. Memory Card Readers Support for SD, SDHC and SDXC cards, as well as microSD, microSDHC and microSDXC cards. Only one card reader can be active at a time. Power and Power Delivery The docking station supports USB Power Delivery 3.0 via the USB Type-C™ power port. An external USB-C™ power adapter can be connected to power the host device. The delivered power is up to 100 W. The docking station can also be used without external power, in which case it is powered via the host connection. Cable Fixed connection cable with a length of approximately 15 cm (excluding connectors). Specifications • Product type: USB Type-C™ docking station • Host input: 1× USB Type-C™ male • Power input: 1× USB Type-C™ female (Power Delivery) • HDMI output: 1× HDMI A female • VGA output: 1× VGA 15-pin female • USB ports: 2× USB Type A + 1× USB Type A BC1.2 + 1× USB Type-C™ (USB 3.2 Gen 1×1) • Card readers: SD / SDHC / SDXC, microSD / microSDHC / microSDXC • Network: RJ45 Gigabit Ethernet (10/100/1000 Mbps) • Signal direction: USB Type-C™ / Thunderbolt™ → video, data, network • HDMI version: HDMI™ 1.4 High Speed • Max. HDMI resolution: 4K@30Hz • Max. VGA resolution: 1920×1080@60Hz • USB Power Delivery: PD 3.0, up to 100 W • Power supply: via USB Type-C™ (bus powered or external) • Cable length: approx. 15 cm • Colour: Grey • Dimensions (L×W×H): approx. 110 × 59 × 12 mm Explanation of terms used • USB Type-C™: Reversible connector for data, video, and power transfer. • DisplayPort Alternate Mode: Technology that transmits DisplayPort video signals directly via a USB Type-C™ connection. • Thunderbolt™ 3: Interface via USB-C™ that supports DisplayPort signals and high bandwidth. • USB 3.2 Gen 1×1: USB standard with a maximum data rate of 5 Gbit/s via a single data lane. • USB Power Delivery (PD): Standard for delivering and passing through electrical power via USB-C™. • BC1.2: USB Battery Charging specification for increased charging current. • Gigabit Ethernet: Network connection with a maximum speed of 1000 Mbps. Ask a product question
