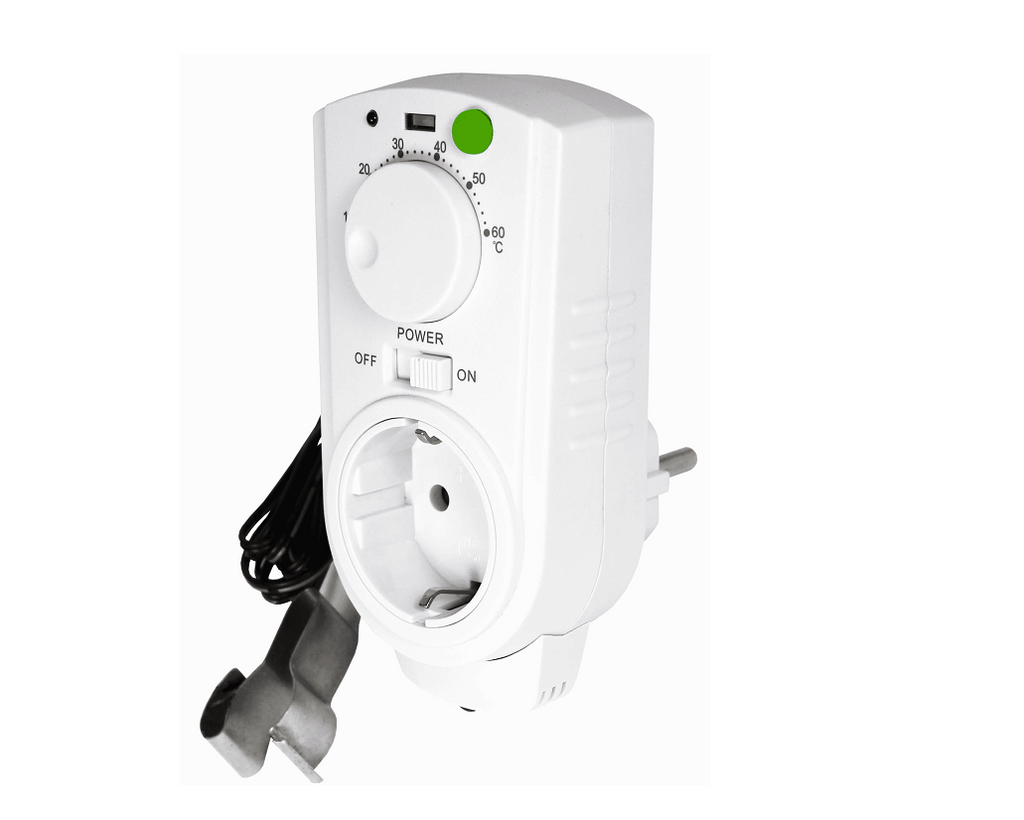

Ecosavers thermostatic pump switch underfloor heating

Article number: 8717853705472 View all from Ecosavers > View more: Pump Switches > Ecosavers Thermo Switch Pump Switch Underfloor Heating The EcoSavers Temperature Switch is a smart temperature-controlled switch for underfloor heating and air conditioners. With this switch, you can easily turn connected devices on and off when the temperature rises or falls to the set temperature. You can easily select the temperature using a rotary button. No difficult settings with a display, just simply select the desired switching temperature using the rotary knob. This prevents the underfloor heating pump from running 24/7, even when there is no heat demand for heating (e.g., in summer). The pump is turned on for 1 minute daily to prevent seizing. Easy to install: Plug the switch into the socket and turn it on with the ON-OFF switch. Select the desired temperature at which you want the pump to be activated using the temperature rotary button. Now connect the plug of the circulation pump to the temperature switch. The status indicator is red when the switch is not active (pump not running) and lights up green when the switch is active (pump running). The switch will turn on when the temperature rises to the set temperature and will turn off again when the temperature drops below the set value. Finally, connect the temperature sensor clip to the hot supply pipe. Done! Due to sockets and plugs, NOT suitable for Belgium! Product specifications Thermo Switch Pump Switch Underfloor Heating Item description Thermo Switch Pump Switch Underfloor Heating Article number 8717853705472 Type Smart/Automation Country of origin China Thermo-Switch-Control.pdf Supply voltage: 230V AC / 50Hz Maximum load: 9A / 2.070W Temperature range: 9°C - 60°C Accuracy ± 0.5°C Standby consumption: < 1W Cable length sensor clip: approx. 3 meters Power 3600 W Thickness 75 mm Weight 0.219 kg
