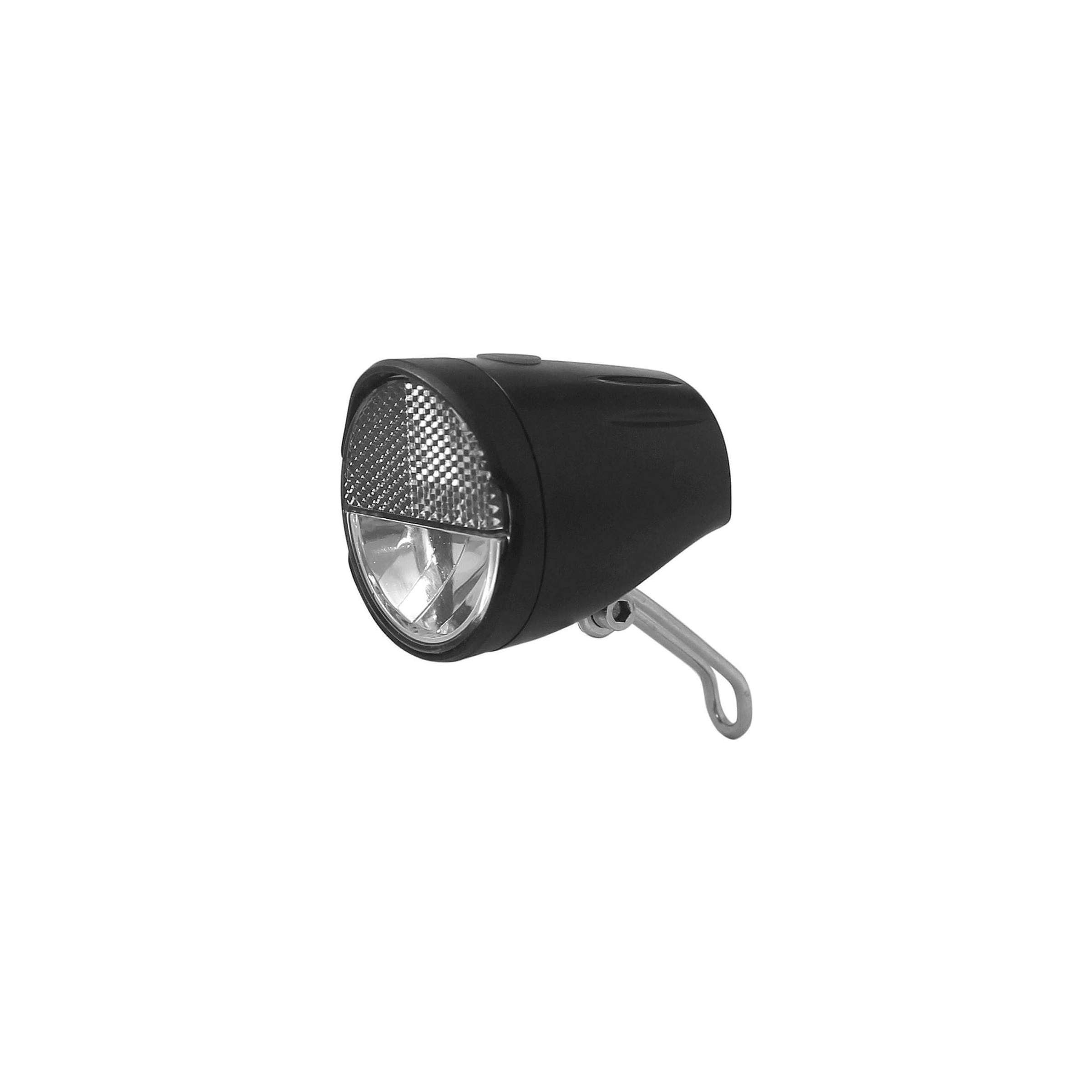

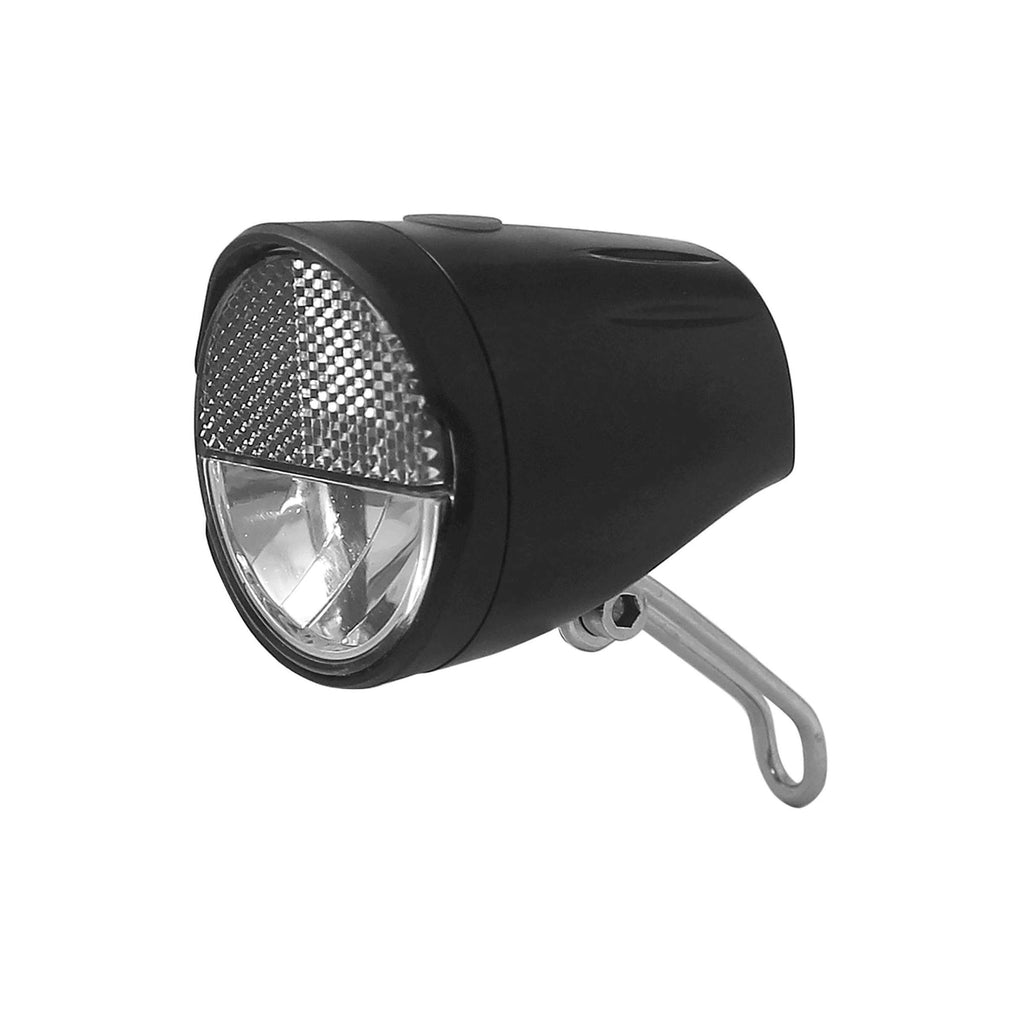

Union headlight UN-4240 Venti battery 20 lux

A battery LED headlight, specially designed for city, trekking and hybrid bicycles.

• A High-Power LED provides a bright light output
• up to 20 Lux light output (measured in the center of the light beam within 10 meters distance)
• Modern and innovative design
• Integrated ON/OFF switch on top
• For mounting on the front fork and with an integrated reflector
• Battery indicator

Technical information:

• Lamp housing and ring around lens area are made of impact-resistant ABS
• Front is made of transparent PMMA with an integrated reflector
• Splash and rainproof

Stainless steel bracket:

Stainless steel bracket for easy and durable mounting on the crown or booster of a regular or suspension fork with an M6 bolt. We recommend using stainless steel fasteners during assembly!

O-Ring and bayonet closure

An O-ring between the lamp housing and the lens housing in combination with a bayonet closure connecting the lens housing to the lamp housing ensures that no splash and rainwater enters the lamp. Furthermore, the lens housing is additionally secured with a stainless steel (coin) screw at the bottom.

Switch

Easy to operate ON/OFF push button switch, made of TPE (Thermo-Plastic-Elastomer) on top of the headlight

Batteries

• Includes 4 pre-installed AAA alkaline batteries
• A plastic retaining strip protects the battery against unintentional power loss

Battery indicator

Below the push button switch on top of the headlight there is a battery indicator, which lights up red when the indicator is activated. Replace the batteries as soon as possible when the battery indicator is activated.

Burn time

16 to 20 hours (depending on the condition of the batteries, how the lamp is used and outside temperature)

Dimensions

60 x 69 mm (diameter and depth of the housing without bracket)

Weight

128 gr (including batteries)
