Enduro bearings 6200 llb - abec 3 (radial) - 10x30x9

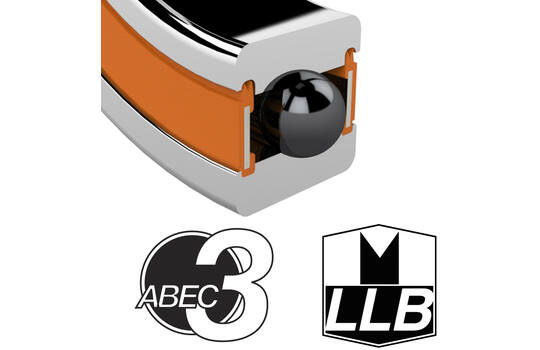

ABEC 3: A standard value used to measure the tolerance of the surface of rolling bearings. There are five classes: 1, 3, 5, 7, and 9. The higher the ABEC class, the greater the precision, efficiency, and speed capacity, but the highest ABEC classes are not necessarily the fastest rotating components. All quality manufacturers worldwide use at least ABEC 1 as standard. At Enduro, the minimum standard is ABEC 3. ABEC 3: Steel balls Grade 10. Race in a 52100 chrome alloy and high-carbon steel. ABEC 3 standard. Depending on their application, these bearings use LLU or LLB seals; even when marked with 2RS. LLB: Our most popular seal, consisting of a rubber finish with a metal core. Unlike the standard 2RS, we go a little further by machining a recess in the inner ring, where the seal can rotate with excellent efficiency and resistance compared to a lesser bearing. Rather than a single "lip" of a thick seal rubbing against an uneven surface, the LLB type uses 2 lips of seals, razor-thin, that slide into a recess with light contact. The outer "lip" keeps water and impurities out, while the inner seal retains grease for smooth rotation and long intervals between maintenance.

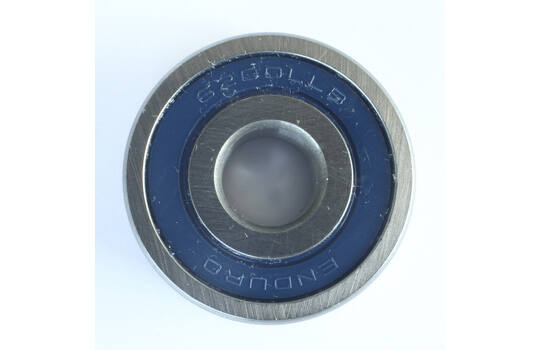

Item number BB6200LLB EAN 185843000216 Brands Enduro Bearing height (mm) 9 Inner bearing diameter (mm) 10 Outer bearing diameter (mm) 30 Type ABEC 3 6200 LLB ABEC-3 Radial Bearing (C3 Clearance) – 10mm x 30mm x 9mm The 6200 LLB ABEC-3 is a high-quality radial bearing traditionally used as a hub bearing in high-speed wheel hubs, but is now also popular in crown rollers. This bearing features a deep groove race design with Grade 10 balls, an LLB seal, and 90% fill of high-pressure waterproof grease, making it resistant to daily use and weather conditions. Our Enduro line offers bearings in high-carbon chrome steel, 440C stainless steel, ceramic-hybrid, and XD-15 with ceramic or stainless steel balls. Designed with deep groove races to accommodate larger balls and double-lip seals running in micro-grooves, they create a complete labyrinth that provides superior protection against dirt, water, and dust. Static load 533 lbf / 2.37 kN. Weight: 31.1 g.
