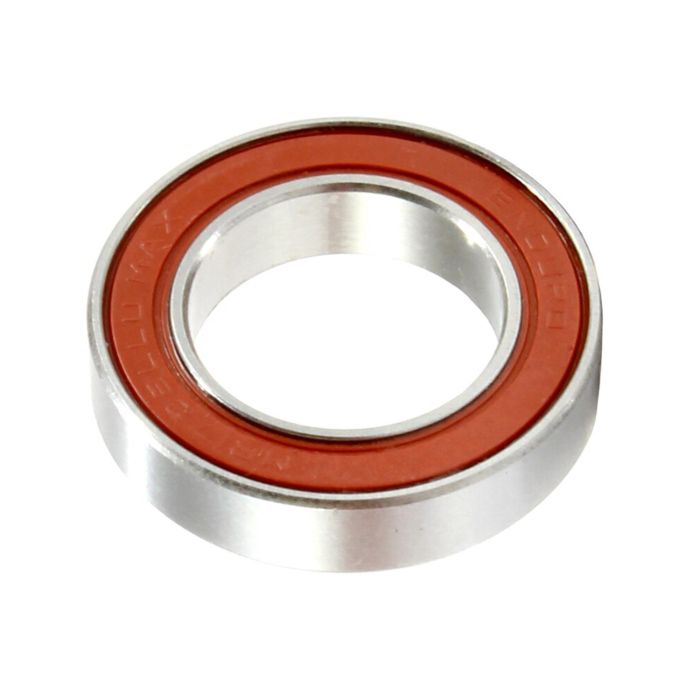

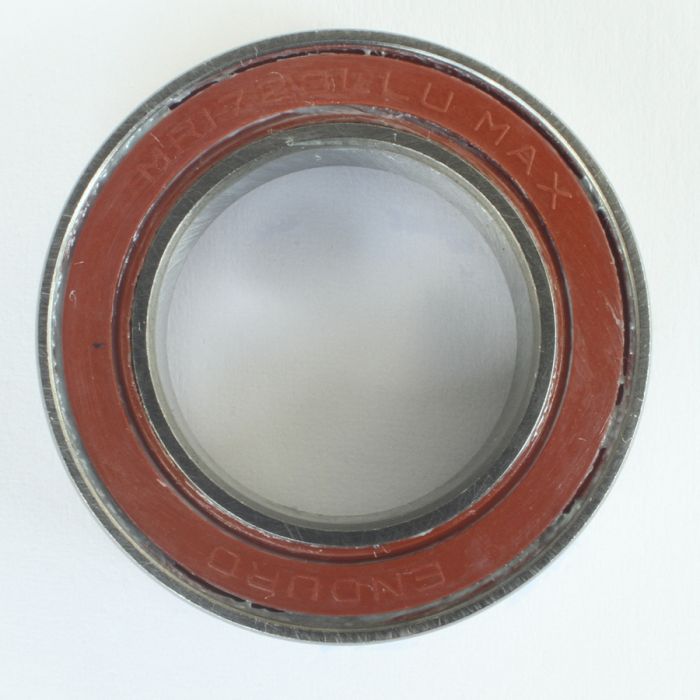

Enduro Bearings MR 17286 LLU MAX - ABEC 3 MAX (radial) - 17x28x6

ABEC 3 MAX: MAXimum number of Grade 10 steel balls. Specifically designed for rear suspension pivots. These bearings can handle a load 35 – 40% higher than standard bearings. The MAX bearing uses CRC marine grease, which provides maximum protection. Even salt water has no effect on this bearing. The LLU seals ensure maximum protection against the elements. LLU: Similar to our LLB type seals, the LLU is a contact seal where the double "lips" are housed in a recess of the inner ring. A better seal is guaranteed, these seals are ideal for suspension pivots or headsets that are constantly in contact with salt, sweat, and dust. This improved sealing and the 2 "lips" help retain 90% of the grease we use on the bearings, thus protecting it from moisture and continuously lubricating the balls and the raceway.

Item number MR17286LLUMAX EAN 810191014003 Brands Enduro Bearing height (mm) 6 Bearing inner diameter (mm) 17 Bearing outer diameter (mm) 28 Type ABEC 3 MAX MR 17286 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing - - 17mm x 28mm x 6mm - Enduro bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing. The additional balls, combined with deep race grooves in these bearings for greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Trek and Giant. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 733lbf / 3.26kN Weight - 13.9g -
