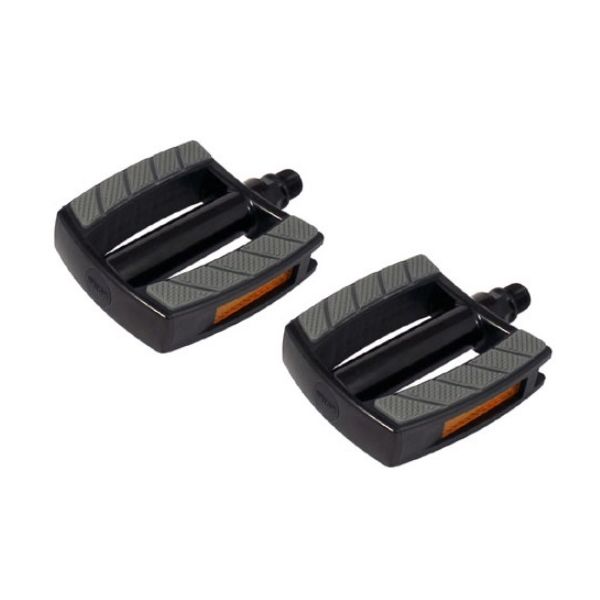

Pedals Union Sp-2828 E-Bike Aluminum Black

A bicycle pedal with a large "anti-slip" insert on both sides and a robust aluminum body, specially designed for use on electric bicycles. Also suitable for city, trekking, and hybrid bikes.

• The sealed cartridge bearing ensures frictionless movement
• The pedals are each equipped on two sides with integrated, approved reflectors and sealed bearings
• Pedal type
  • "3-component pedal", consisting of:
    • a cast aluminum body, brightly ball polished or black (electro dyed black)
    • the pedal cage is made of black polypropylene
    • the extra-large "anti-slip" insert in the cage is made of grey TPE (thermo-plastic-elastomer)
• Ball bearing
  • A maintenance-free "industrial standard" bearing system, on both sides
  • Each pedal is equipped with a sealed cartridge bearing and a plain bearing bush
• Axle
  • CrMo steel, heat-treated to 75HRA (+/-3)
  • With 9/16"- 20 TPI thread
• Reflectors
  • Integrated into the pedal cage
  • Approved according to BS, JIS, TPP, as well as German StVZO standards
• Dimensions
  • 111* x 90 x 27 mm (*length x width x height)
  • *length = maximum mounted pedal length (part protruding beyond the crankset)
• Weight
  • 504 gr/per set
• Standardization
  • The pedal complies with ISO standards.
  • ISO 4210-8: "Cycles - Safety requirements for bicycles - Test methods for pedal and crankset"
