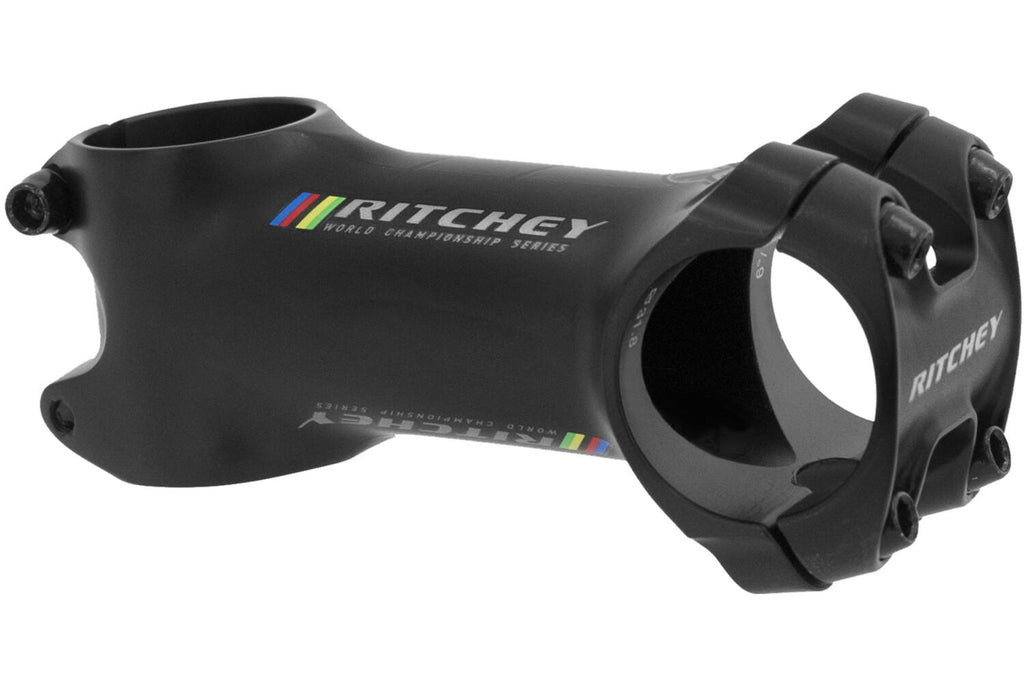

Ritchey Stem WCS C220 Matrix UD Matte 90mm

Ritchey's new WCS C220 stem is a revolutionary design that offers optimal performance and easy installation and removal. With a press-fit handlebar clamp interface and forward-facing hardware, this stem is quicker and easier to use. The C220 handlebar clamp design provides a secure interface with a full 220-degree wrap, allowing the stem body to 'embrace' the handlebar, making it less prone to damaging lightweight bars. This design allows for a lighter faceplate and stem without compromising strength or stiffness. The Carbon Matrix stem body is made from forged 7075 aluminum with a carbon exoskeleton, making it 12% stiffer than the WCS Alu C220 stem. The stem comes with premium quality CroMo steel bolts.

• Material: 3D forged 7075 Alu, Carbon wrapped body
• Coated CroMo steel bolts on faceplate: 4 x 4mm
• Coated CroMo steel offset steerer clamp bolts: 2 x 4mm
• Maximum torque on all hardware: 5 Nm
• Compatible with all 31.8 handlebars
• Press-fit clamp design for easy installation and removal
• Lengths: 70-130 mm
• Angle: 84/6 degrees
• Handlebar height: 42 mm
• Steerer tube: 1-1/8"
• Faceplate width: 42 mm
• Matte UD carbon finish
• Weight: 126 g (110 mm)

Article number: 31056117018
EAN: 796941317405
Brands: Ritchey
Model: WCS
Type: C220 MATRIX
Material: Aluminium
Material type: Aluminium / Carbon
Net weight (g): 126
Handlebar diameter (mm): 31.8
Fork tube diameter: 1 1/8"
Stem length (mm): 90
Fork tube clamp height (mm): 42
Fork tube diameter (mm): 28.6
Angle (°): 6
Colour: Black
