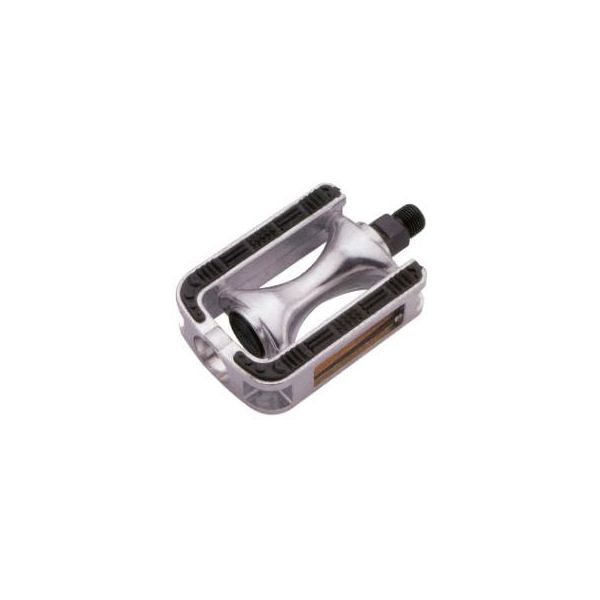

Union pedals SP-810, aluminum body, non-slip. 9/16". Color: black, hang packed

A bicycle pedal with an anti-slip insert on both sides and a robust aluminum axle housing and cage, specially designed for city, trekking, and hybrid bikes.

• The pedals are equipped with a durable ball bearing system
• The pedals each have integrated approved reflectors on two sides

• Pedal type
• "2-component pedal", consisting of:
• a cast aluminum axle housing and cage (one-piece), highly polished
• The "anti-slip" insert in the cage is made of black TPE (Thermo-Plastic-Elastomer).

• Ball bearing
• Adjustable ball bearing system, according to the "ball & cone" principle, on both sides
• With 11 x 5/32" caged balls on each side

• Axle
• Boron steel, heat-treated to 75HRA (+/-3)
• With 9/16"- 20 TPI thread

• Reflectors
• Integrated into the pedal cage
• Approved according to BS, JIS, TPP, as well as German StVZO standards (K370/K369)

• Dimensions
• 108* x 69 x 33 mm (*length x width x height)
• *length = maximum length of mounted pedal (part protruding beyond the crankset)

• Weight
• 541 g/per set

• Standardization
• The pedal passed the TÜV test and complies with the EN standard.
• EN-14764 "Safety requirements and test methods for city and trekking bicycles"
