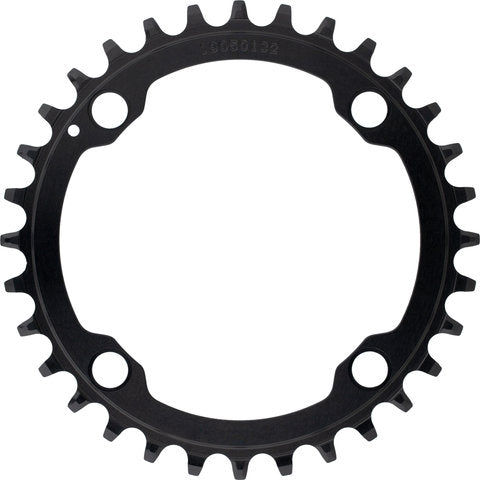

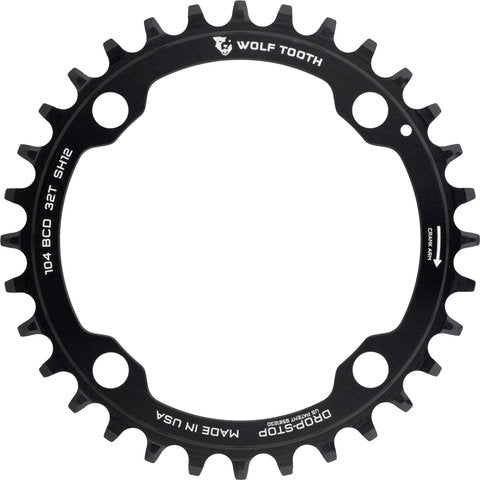

Wolf tooth components 104 bcd chainring for shimano hg+ 12-speed chains

Product Description Wolf Tooth Components 104 BCD chainring for Shimano HG+ 12-speed - optimised design The Wolf Tooth Components 104 BCD chainring for Shimano HG+ 12-speed chain is suitable for all cranks with a bolt circle diameter of 104 mm. It was designed and constructed specifically for use with Shimano XTR, XT and SLX 12-speed Hyperglide+ chains. These chains interact with the chainring very differently than a traditional wide-narrow design. Wolf Tooth has therefore invested a lot of time to understand how the HG+ system works and to design an optimal tooth profile. The result is a chainring that combines the quiet and smooth performance of the Hyperglide Plus drivetrain with the legendary Wolf Tooth chain retention. This also counteracts premature wear, which can occur when using a non-optimised product. Specifications:Application:Cross Country, All Mountain, EnduroMount:104 mm bolt circle diameter, 4-armTeeth:32 T, 34 T, 36 TGearing:1x12-speedTechnical Information:Material:aluminium (7075-T6)Compatibility:all cranks with 104 mm bolt circle diameter (e.g. older XT, SLX, Deore 2x cranks)Shimano 12-speed HG + (Hyperglide+) chains6 mm chainring bolts for 1x cranks8 mm chainring bolts when using a bashringFeatures:optimised tooth profile for HG+ 12-speed chainsexcellent chain retentionMade in the USA Note from the manufacturer:It is best to use a clutch rear derailleur. For very muddy conditions a chain guide in combination with clutch rear derailleur is recommended.Technology:Drop-Stop® ST Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning off mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud. In the ST version, the Drop-Stop tread is optimised for use on mountain bikes with Shimano Hyperglide+ 12-speed gears. The teeth are somewhat narrower overall. The wide teeth have a symmetrical trapezoidal shape (Symmetric Trapezoidal = ST) to accommodate the more extended inner edges of HG+ chains and thus guide them. The outsides do not touch the chain, unlike the narrow teeth and unlike Drop-Stop A and B. Manufacturer Numbers:32 tooth:10432SH1234 tooth:10434SH1236 tooth:10436SH12Contents:1 x Wolf Tooth Components 104 BCD Shimano HG+ 12-speed chainring Weight: black | 32 : 47 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
