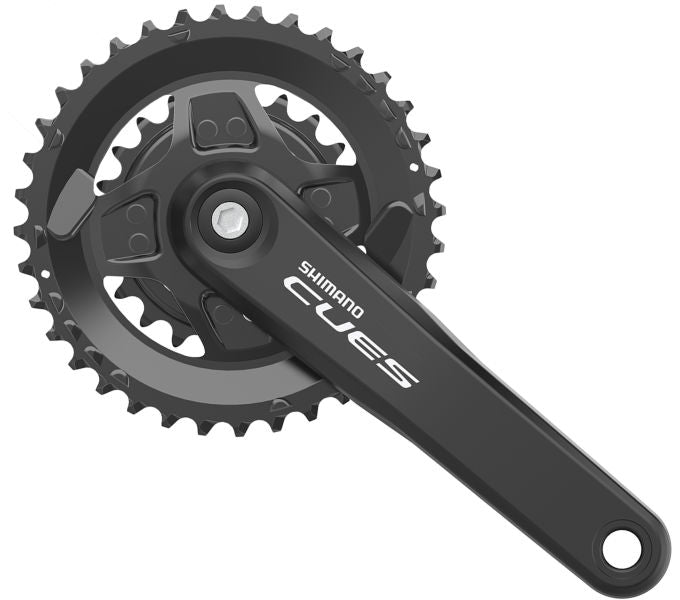

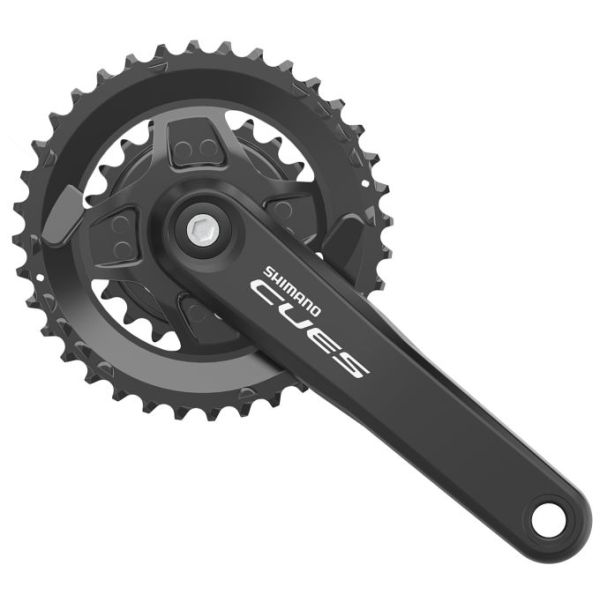

Product Description Shimano CUES FC-U4000-2B - Square crank with two chainrings for Boost over locknut dimension The CUES FC-U4000-2B square crankset was designed by Shimano for Linkglide drivetrains on mountain and touring bikes. It is suitable for 2x9-speed, 2x10-speed and 2x11-speed gears and produces a chainline of 51.8 mm further out. This is why frames with the so-called Boost Standard, i.e. an over locknut dimension of 148 mm, are compatible. The Q-factor is 178 mm. The gradation is chosen so that it can be pedalled harmoniously and smoothly on different types of terrain. Due to its stiffness, the crank made of aluminium and steel ensures reliable performance. The four-armed steel chainrings are permanently installed via riveted joints. Specifications:Application:All Mountain, City & TouringCompatibility:2x9-speed, 2x10-speed, 2x11-speedChainring Mount:4-arm (riveted)Technical Information:Series:CUES U4000Crank Arm Material:aluminiumChainring Material:steelAxle Material:steelGradation:22-36Crank Arm Length:175.0 mmChainline:51.8 mmQ-Factor:178 mmCompatible BSA Shell Width:68 mm / 73 mmRecommended Bottom Bracket:BB-UN101 (not included)Recommended Chain:Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)Compatibility:Rear Over Locknut Dimension: quick release: 141 mmthru-axle: 148 mmBottom Bracket:BB-UN55, BB-UN26, BB-UN101, BB-UN300 (square, 123 mm axle)Shifter:SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-LFront Derailleur: 2x11-speed: FD-U60002x10-speed: FD-U6000, FD-U40002x9-speed: FD-U4000Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Chain Case:not compatibleFeatures:square crank with two chainrings and chainline further to the outsidefor mountain and touring bikes with Shimano Linkglide drivetrain (9-speed, 10-speed, 11-speed)reliable, smooth performance on various terrainwide ratio range for harmonious, comfortable pedallingpainted crank arms and chainringsManufacturer Number:EFCU40002BE62X Contents:1 x Shimano CUES FC-U4000-2B crankset (22-36 tooth)2 x Shimano crank bolts Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
